AUTOOL Smoke Machine Quick Intake Adapter Intake Bladder
Quick Intake universal intake adaptor' is an inflatable block off bladder with a pressurized vapor pass-through that allows technicians to test an entire intake or exhaust systems quickly and easily. It can be used with any brand of smoke machine or diagnostic leak detector to reduce workload on a leak check.
AUTOOL Smoke Machine Quick Intake Adapter Intake Bladder for Smoke Leak Detector SDT206 Diagnostic Tool Airbag Accessory is a one of our AUTOOL Smoke Machine Quick Intake Adapter Intake Bladder Tools, you can buy AUTOOL Smoke Machine Quick Intake Adapter Intake Bladder for Smoke Leak Detector SDT206 Diagnostic Tool Airbag Accessory from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

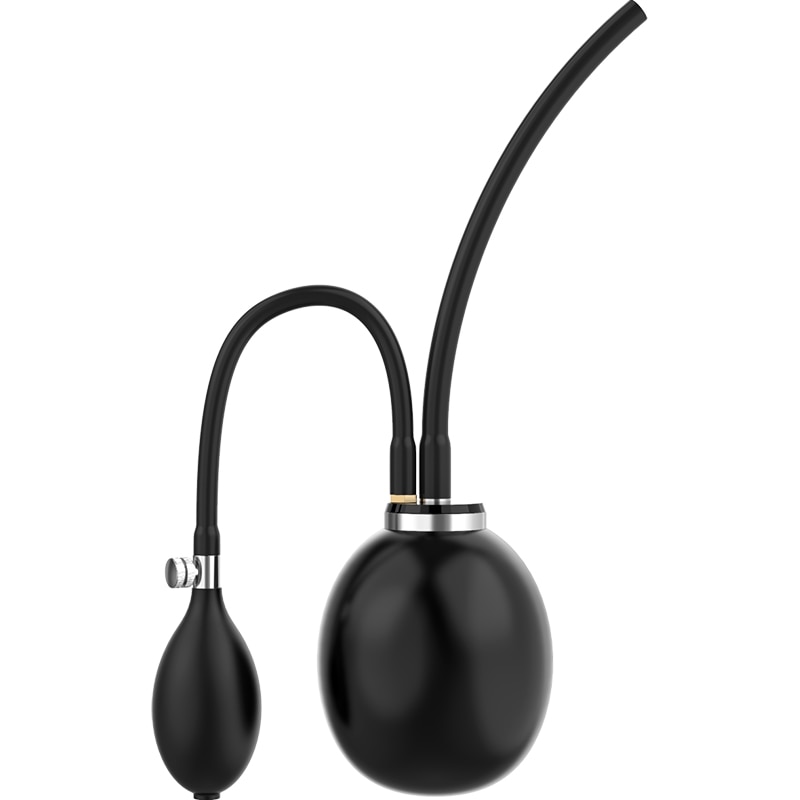

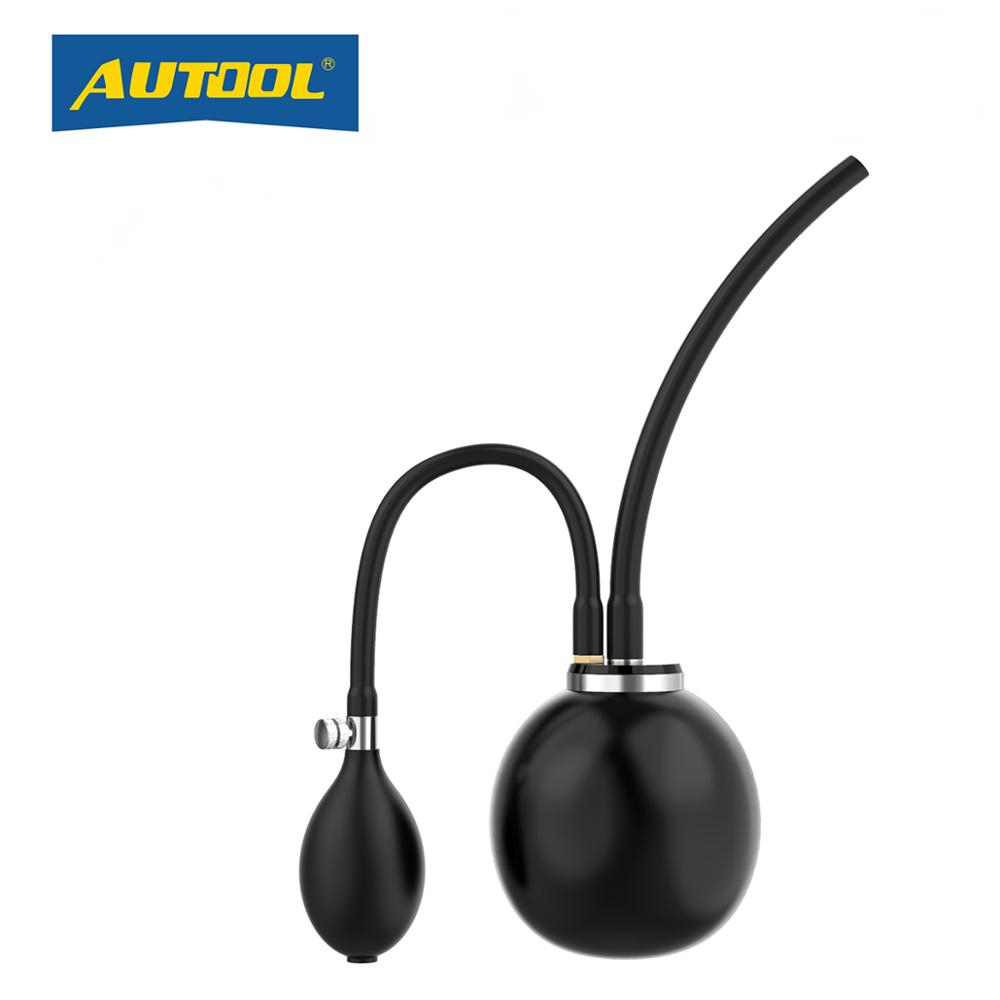

images of AUTOOL Smoke Machine Quick Intake Adapter Intake Bladder for Smoke Leak Detector SDT206 Diagnostic Tool Airbag Accessory
Description：
'Quick Intake universal intake adaptor' is an inflatable block off bladder with a pressurized vapor pass-through that allows technicians to test an entire intake or exhaust systems quickly and easily. It can be used with any brand of smoke machine or diagnostic leak detector to reduce workload on a leak check.It's suitable to any shape of intake / exhaust: Round, oval, square, rectangular and even severely angled and hard to reach intake / exhaust systems, while allowing vapor to pass through for fast diagnostics.
Universal inatake Adapter:
100% fit all cars and light trucks;
Quick seal intake/exhaust easily;
Fits any shape of intake/exhaust,like round,oval,square,rectangular and even severelly angled and hard to reach.

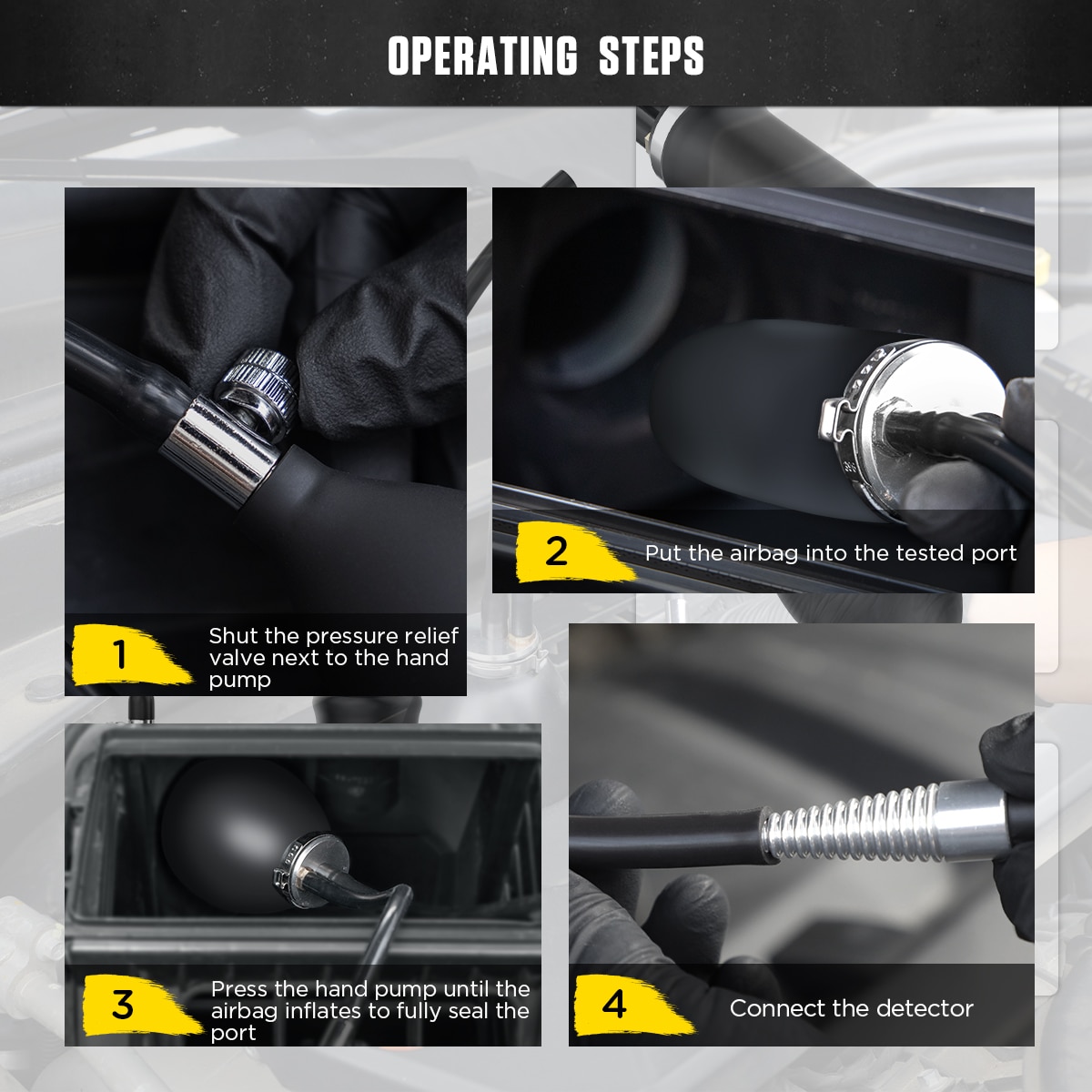

Quick Start Instruction:
1. Clean the inner wall of the intake opening while the Air Filter, and the Throttle connections are removed,so as not to scratch the adapter.
2. Close the Pressure Relief Valve(A) next to the Hand Pump(B).
3. Put the Rubber Component(C) into the intake opening.
4. Inflate the Rubeber Component(C) by pressing the Hand Punm(B) till the intake opening is tightli sealed.
5. Now the system is ready to test,introduce air/smoke into the system by plug the smoke nozzle into the Tube Opening(D).
6. After test,pull off the smoke nozzle,release the inflated air by open the Pressure Relief Valve(A) next to the Hand Pump(B).
7. Clean the adapter for storage,avoid contact with corrosive liquids.
Packing List：
1pc * Air Intake Bladder
