AUTOOL SDT 106 Diagnostic Leak Detector
SDT-106 is designed for detecting the leakage of pipe systems on cars, motorcycles, such as fuel pipe, air intake system and cooling tank.SDT-106 is for all pipe systems except EVAP.
AUTOOL SDT-106 Diagnostic Leak Detector of Pipe Systems for Motorcycle/Cars/SUVs/Truck Smoke Leakage Tester is a one of our AUTOOL SDT 106 Diagnostic Leak Detector Tools, you can buy AUTOOL SDT-106 Diagnostic Leak Detector of Pipe Systems for Motorcycle/Cars/SUVs/Truck Smoke Leakage Tester from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

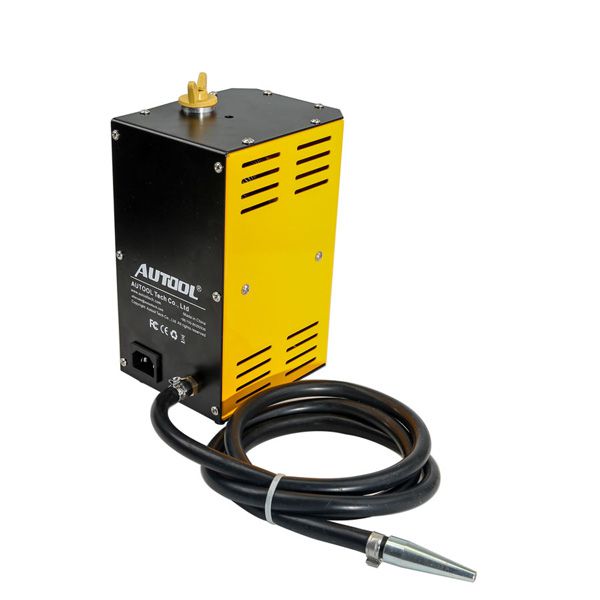

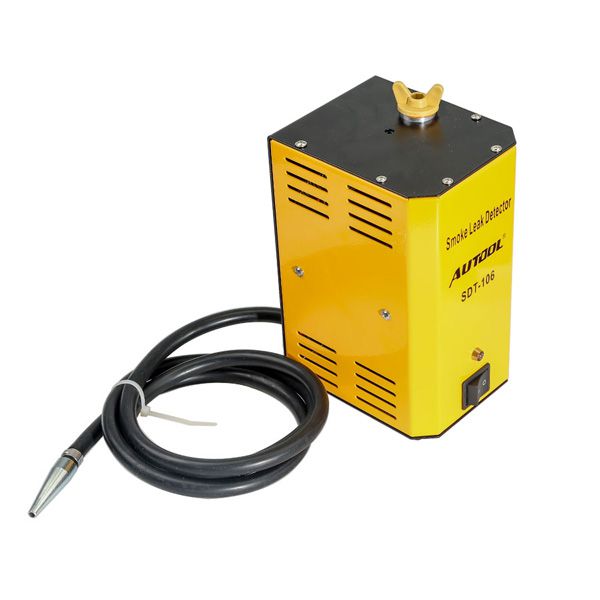

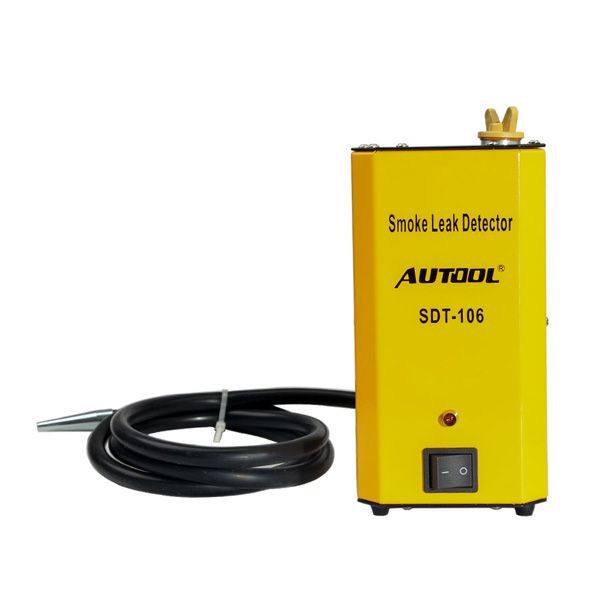

images of AUTOOL SDT-106 Diagnostic Leak Detector of Pipe Systems for Motorcycle/Cars/SUVs/Truck Smoke Leakage Tester
AUTOOL SDT-106 Diagnostic Leak Detector of Pipe Systems for Motorcycle/Cars/SUVs/Truck Smoke Leakage Tester
Attention:1.When you use this detector for the first time, please fill 20-30ml oil into a car, NOT MORE THAN the amount.
2.New oil can be filled with only when the smoke is light, and it can’t be filled over 15ml every time.
3.Before filling new oil, please pour out the remaining oil in the detector.
4.Please replace the detector oil regularly.
AUTOOL SDT-106 Operation:
1.Open the engine cover, and hang the detector in the cover.2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please
secure the other side with a rubber stopple.
3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.
4.Connect the detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way.
5.Turn on the power switch, and detector starts to work.
6.In about 3 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
7.After leak detection, please connect well the wires and pipe.
8.Notes:
* Please do leak detection away from smoke-sensitive parts.
* Not suitable for EVAP.
* Do not run the detector over 8 minutes. It needs interval rest.
* The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later.
* The round parts of this detector is with temperature, be careful to avoid scalding injury.
AUTOOL SDT-106 Maintenance:
With longtime high temperature, the smoke and oil will oxidize and deteriorate. It will infect the service life of smokegenerated part, so please change smoke and oil regularly.
1.Before filling new oil, please pour out the remaining oil in the detector.
2.When the smoke output has water drops, please replace with new oil.
3.Liquid paraffin and baby oil are OK.
4.Please fill new oil with equipped oil bottle
AUTOOL SDT-106 Product Information:
Power: DC12V, vehicle batterySmoke output value: 6l/min
Buil-in air supply
Kindly Note:SDT-106 is for all pipe systems except EVAP.

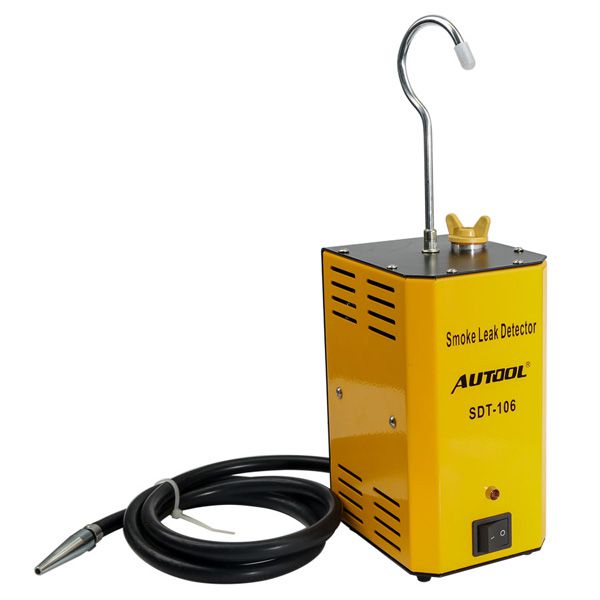

Hook: To hang the detector when detecting
Working Indicator: It is lit when the detector works
Power Switch: Power it on, and the detector works
Smoke output tube: The smoke outlet which connecting with detection port

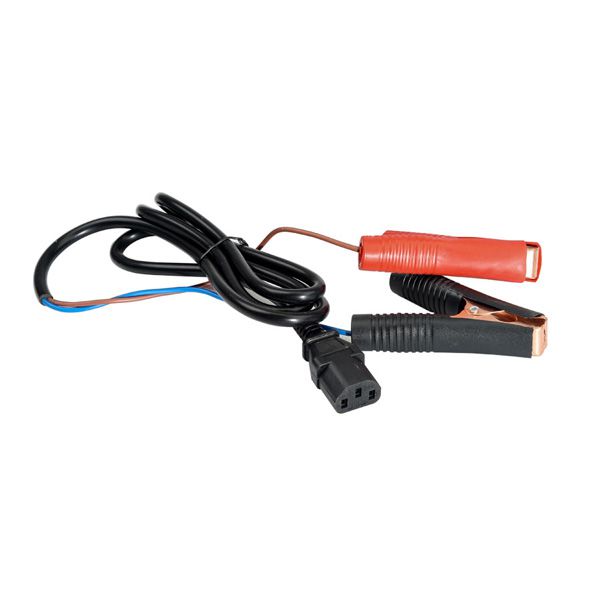

Power clip: To connect with vehicle battery. The voltage is DC12V.

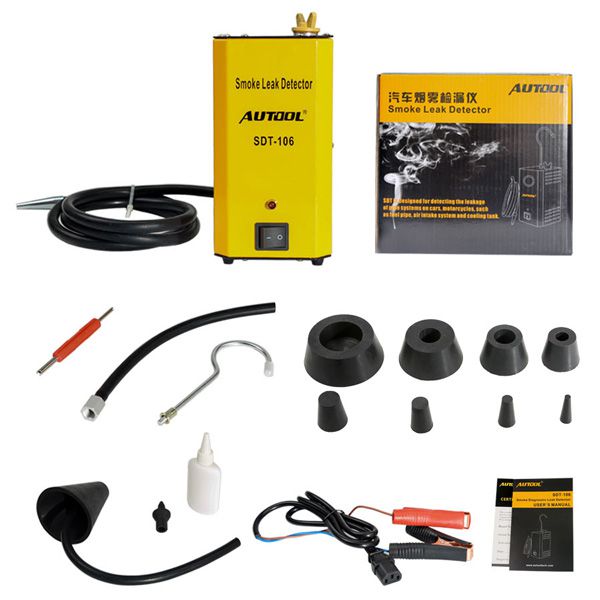

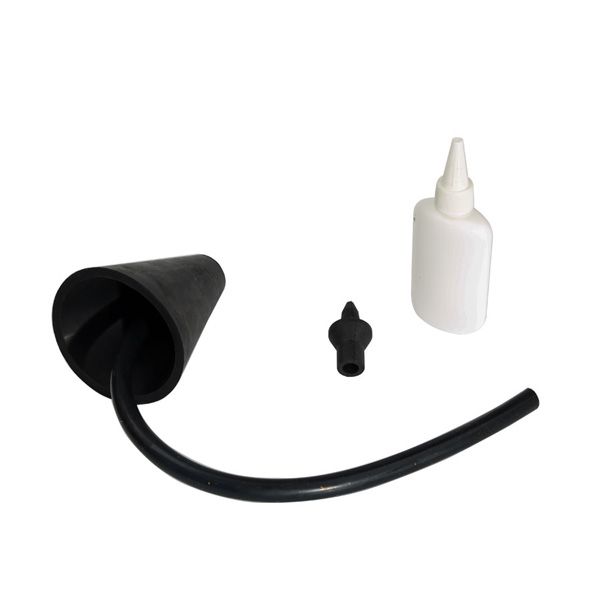

Package List:
1pc x Main Unit1pc x Hook
1pc x Rubber stopples
1pc x Taper stopple
1pc x Taper pipe
1pc x 30ml oil bottle
1pc x User manual
