Description:

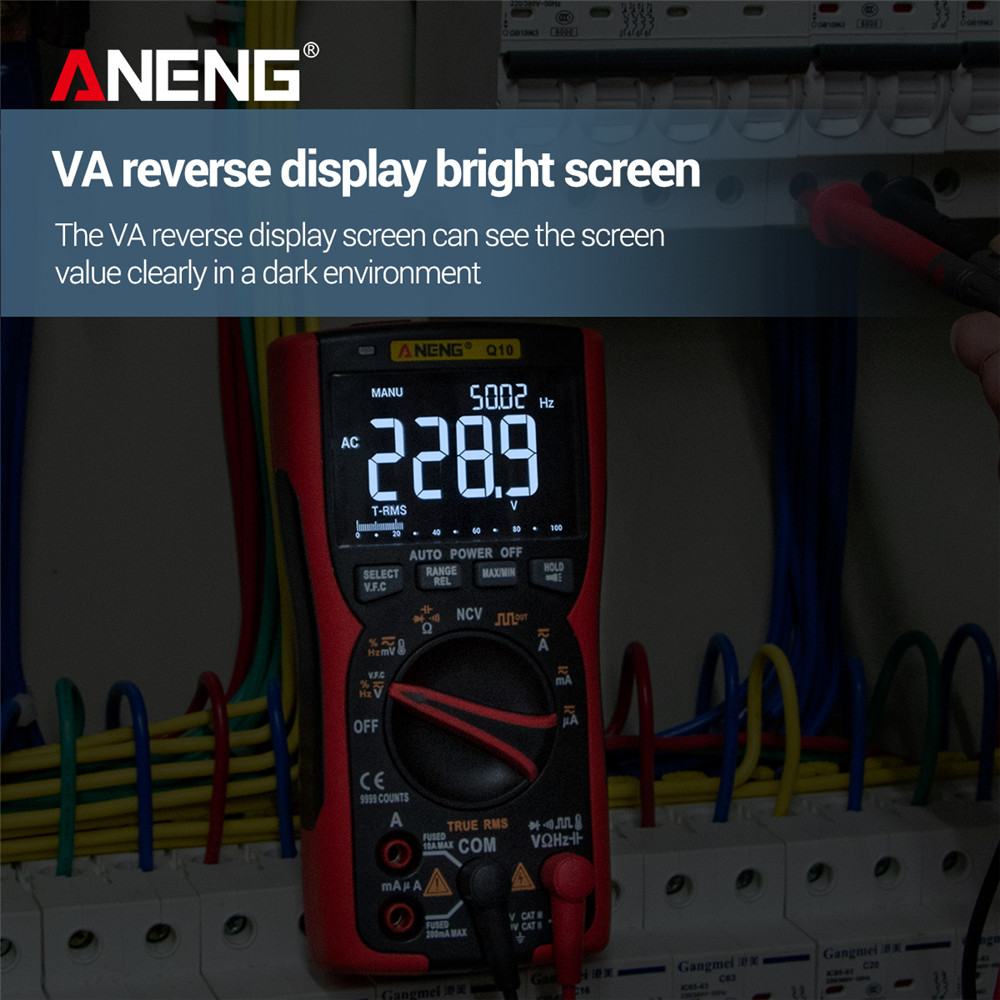

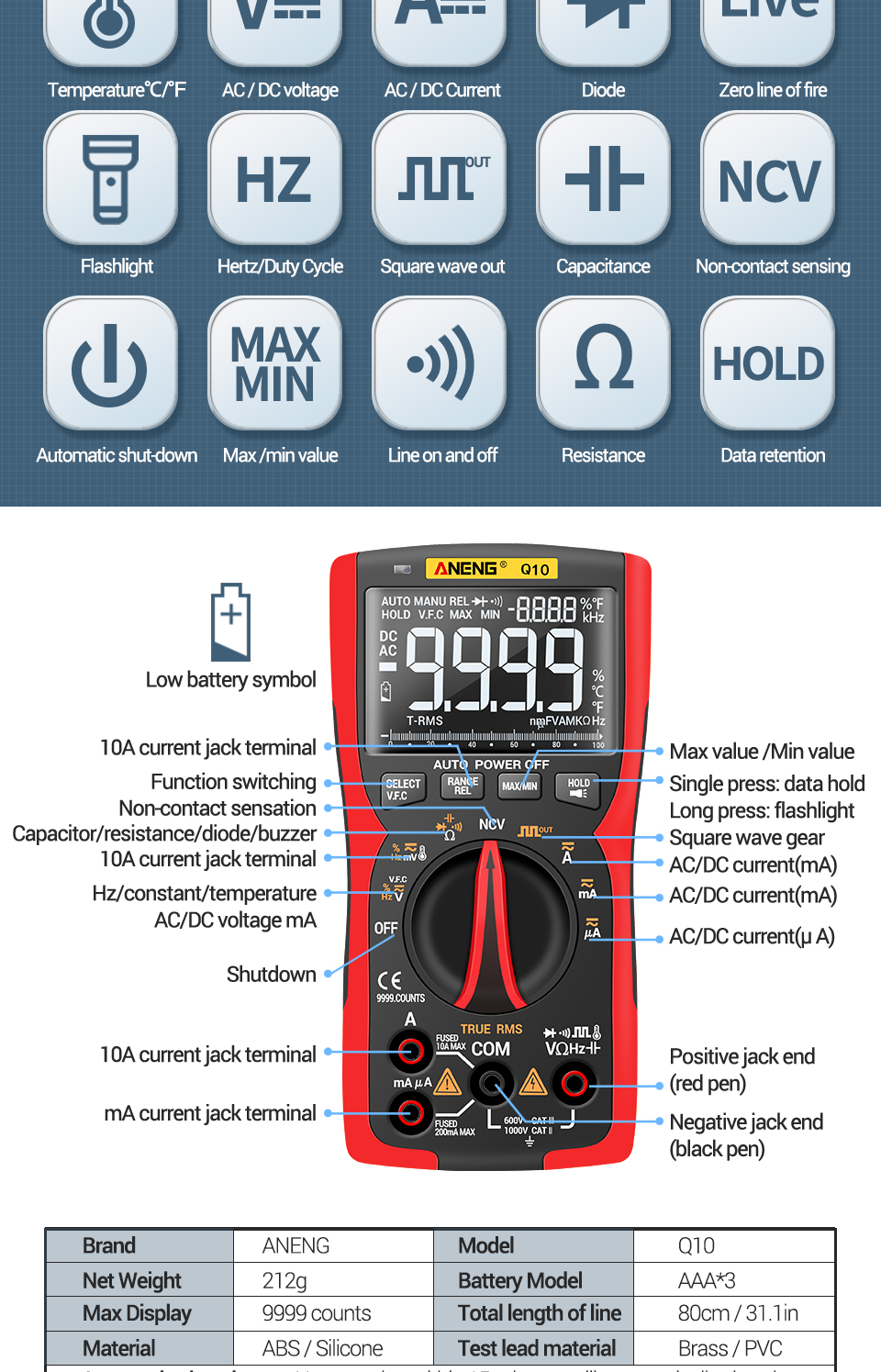

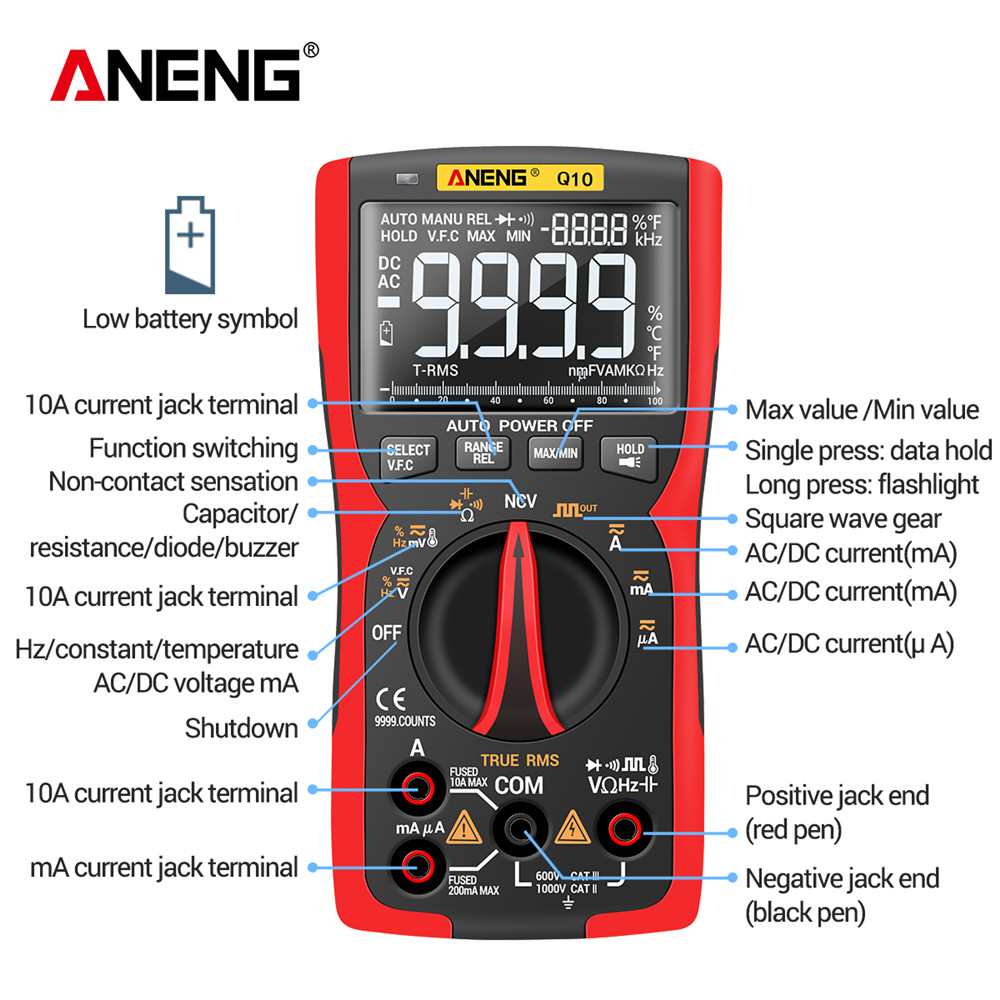

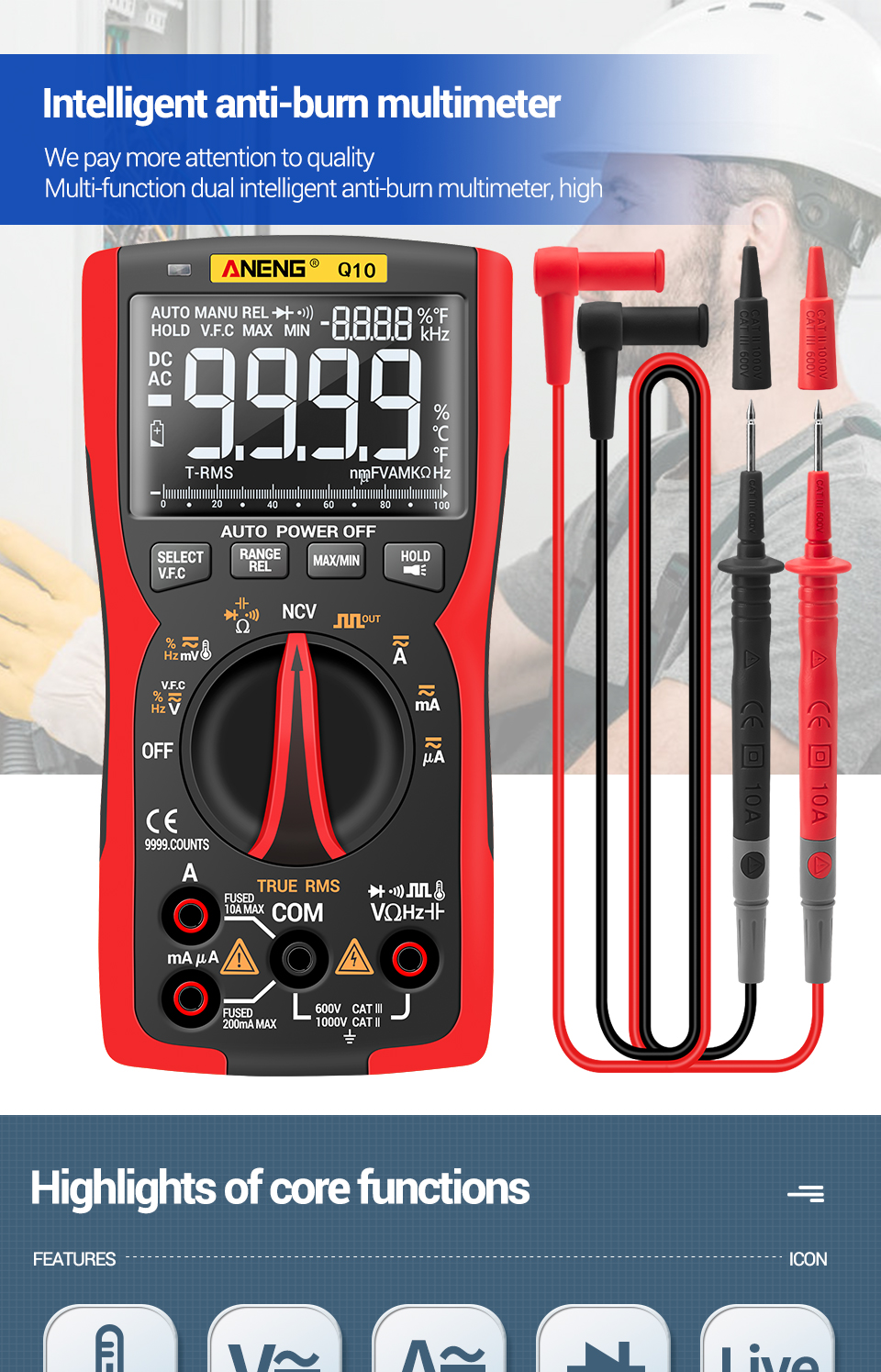

ANENG Q10 is an automatic range digital multimeter with 9999 words with a true effective value. The instrument is full-key operation with triple display.

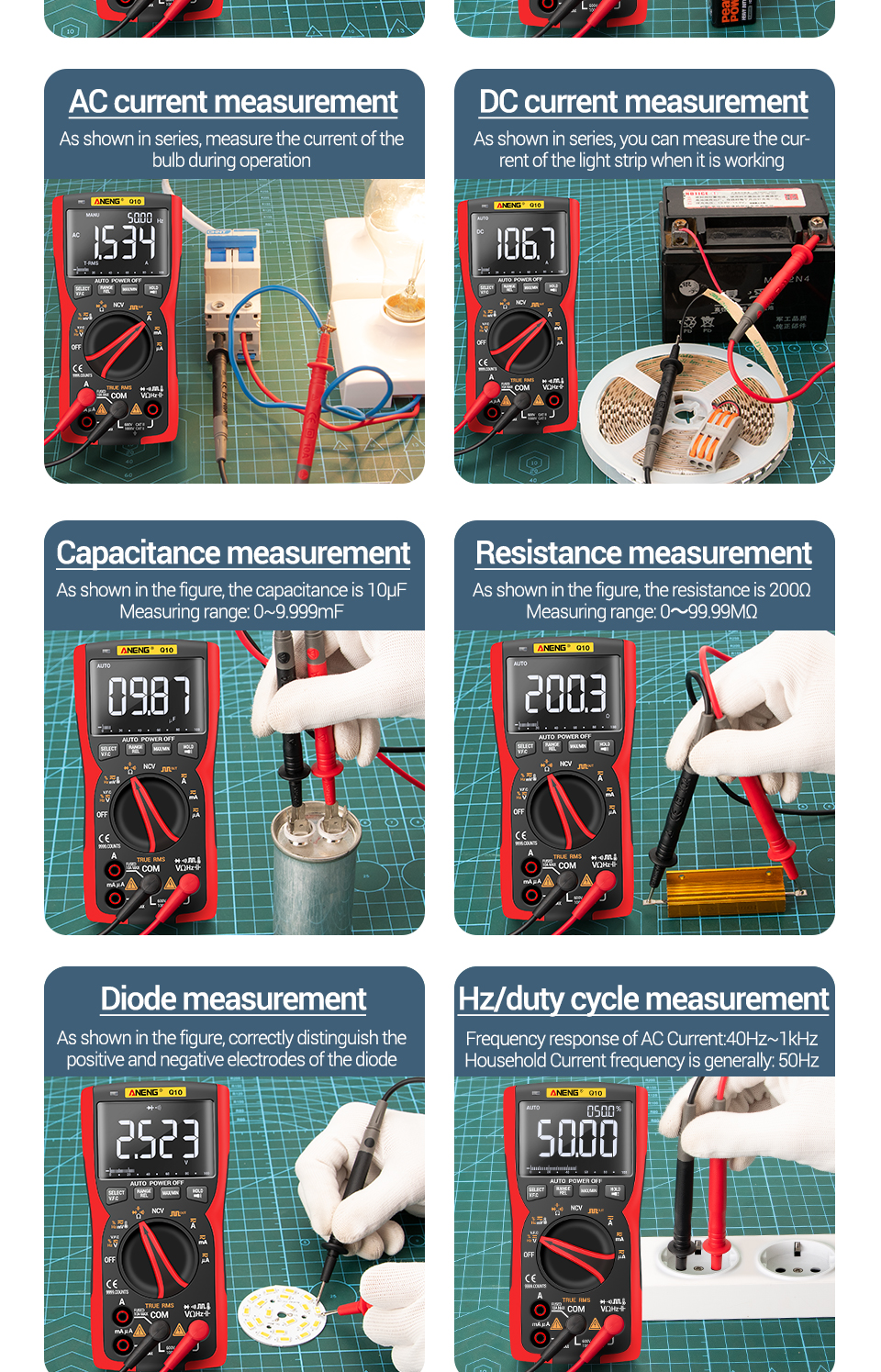

Measure AC voltage and DC voltage

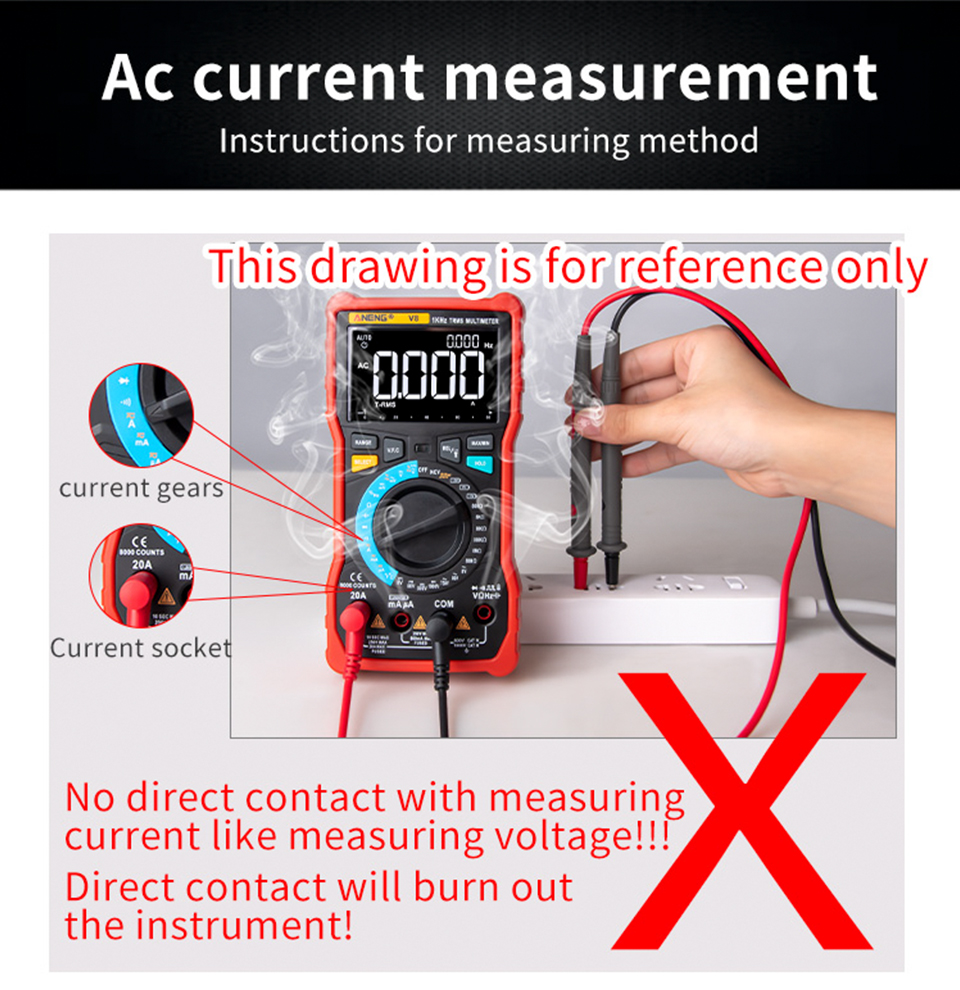

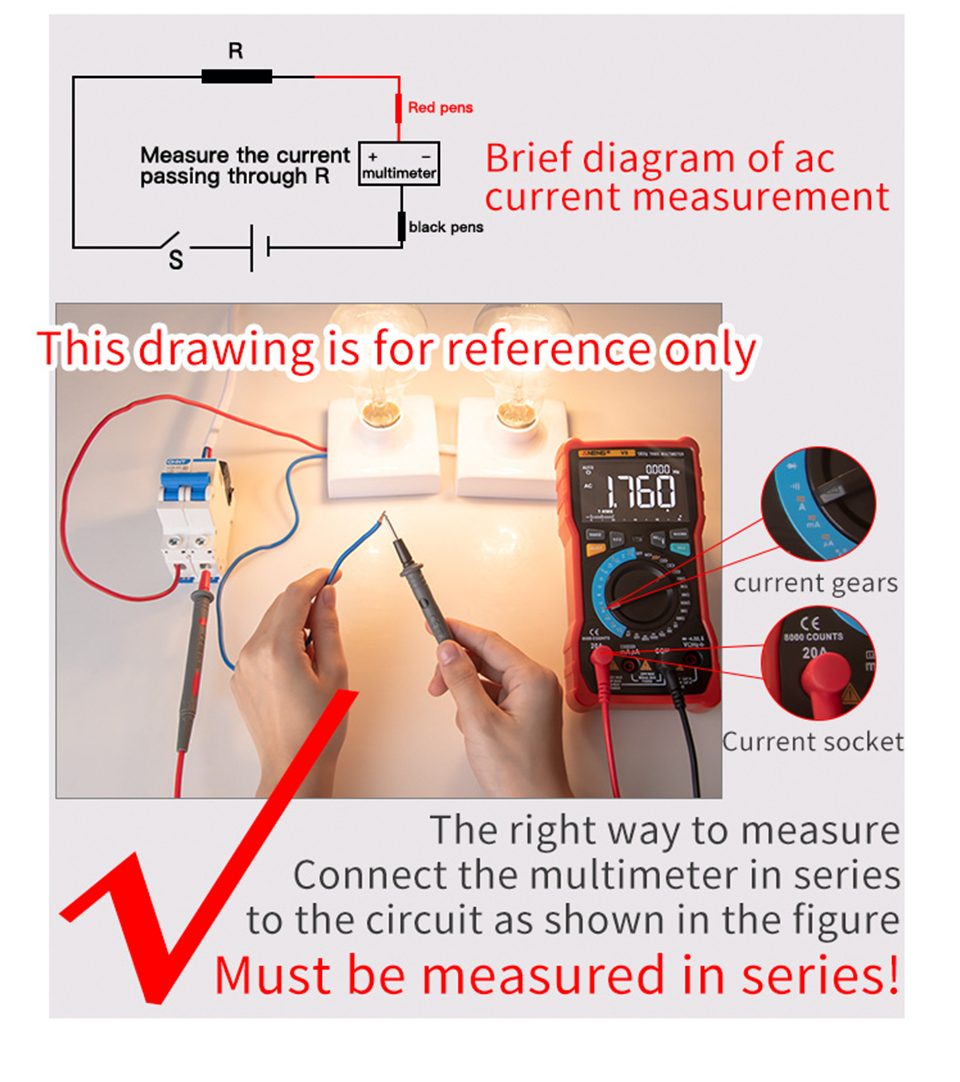

Measure AC and DC current

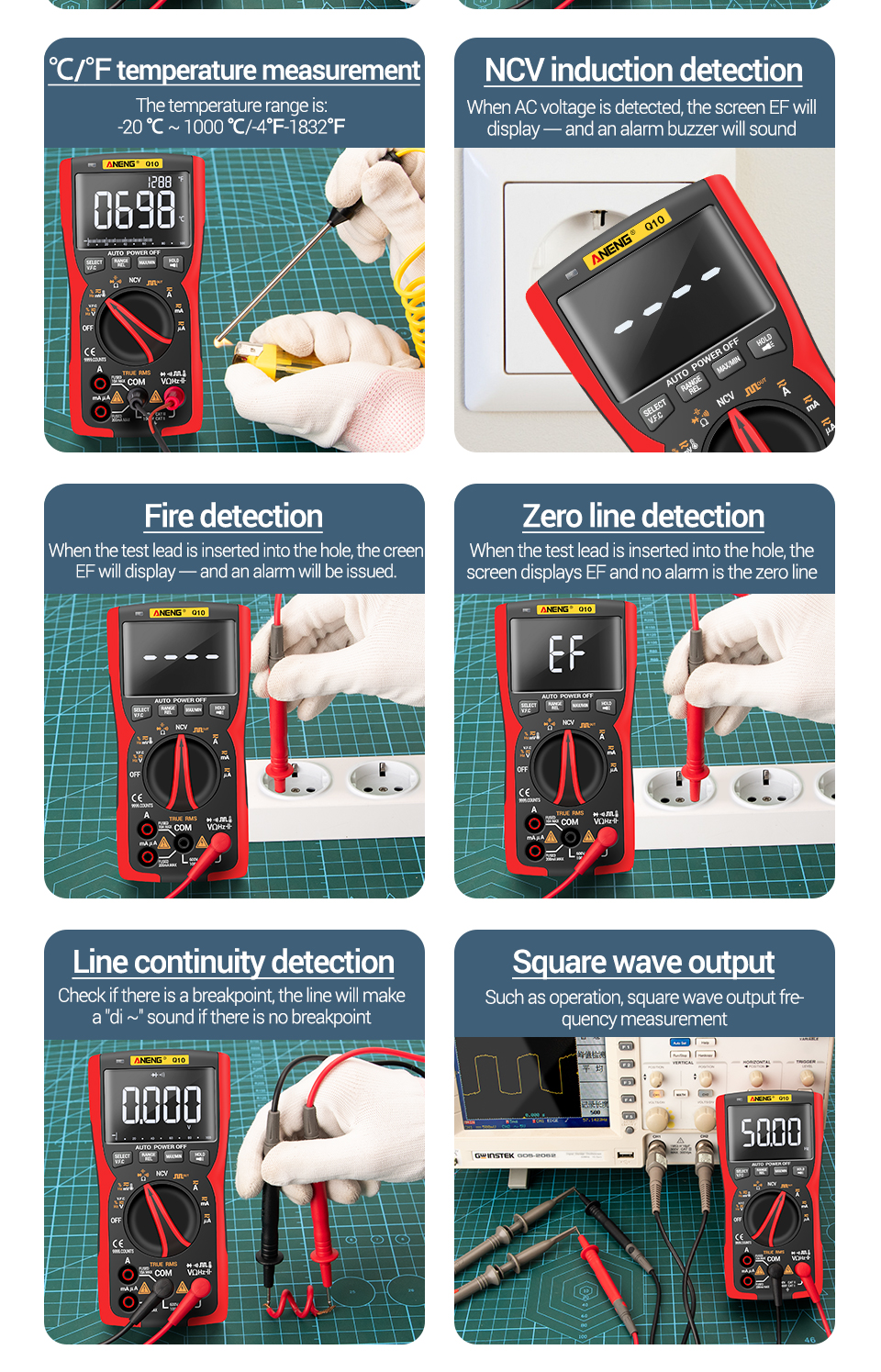

Measuring resistance/temperature
Test continuity and diode
Measuring capacitance/NCV
Measuring frequency and duty cycle
Anti-interference AC voltage detection

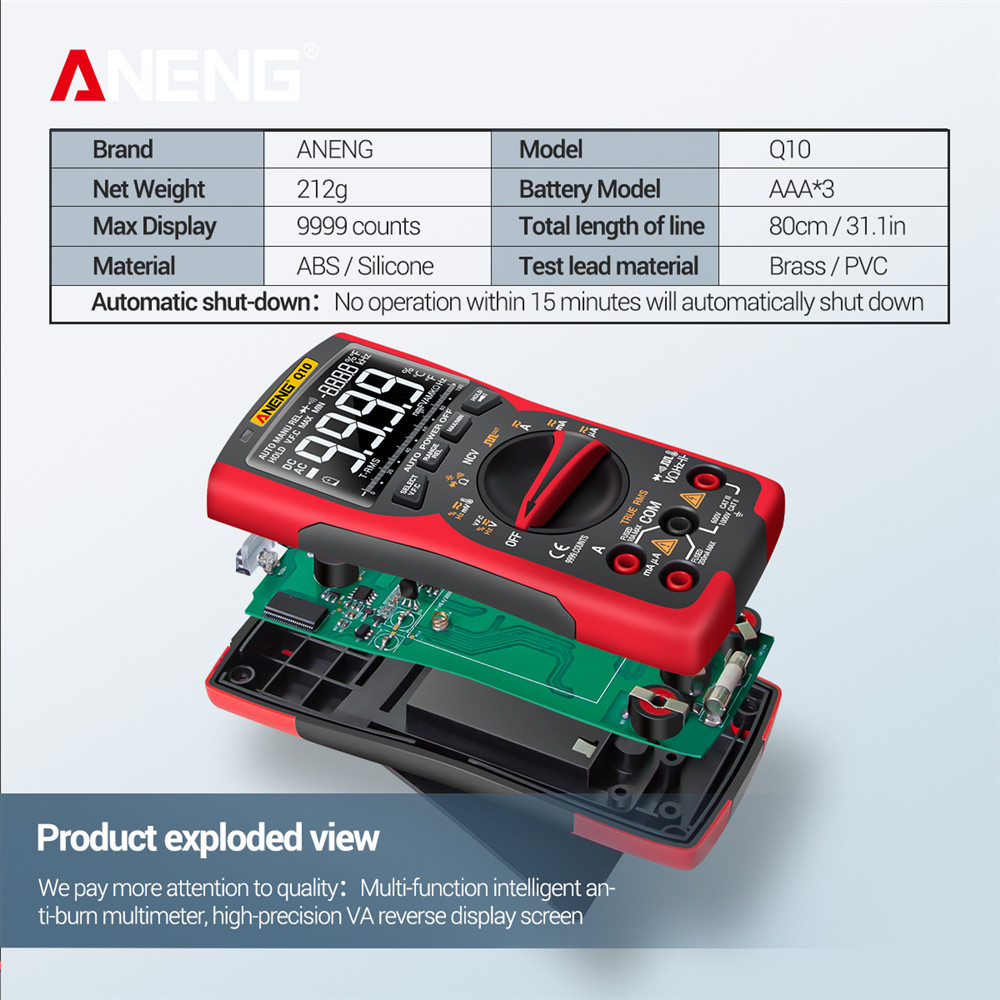

Specification:
| Brand | ANENG | Model | Q10 |

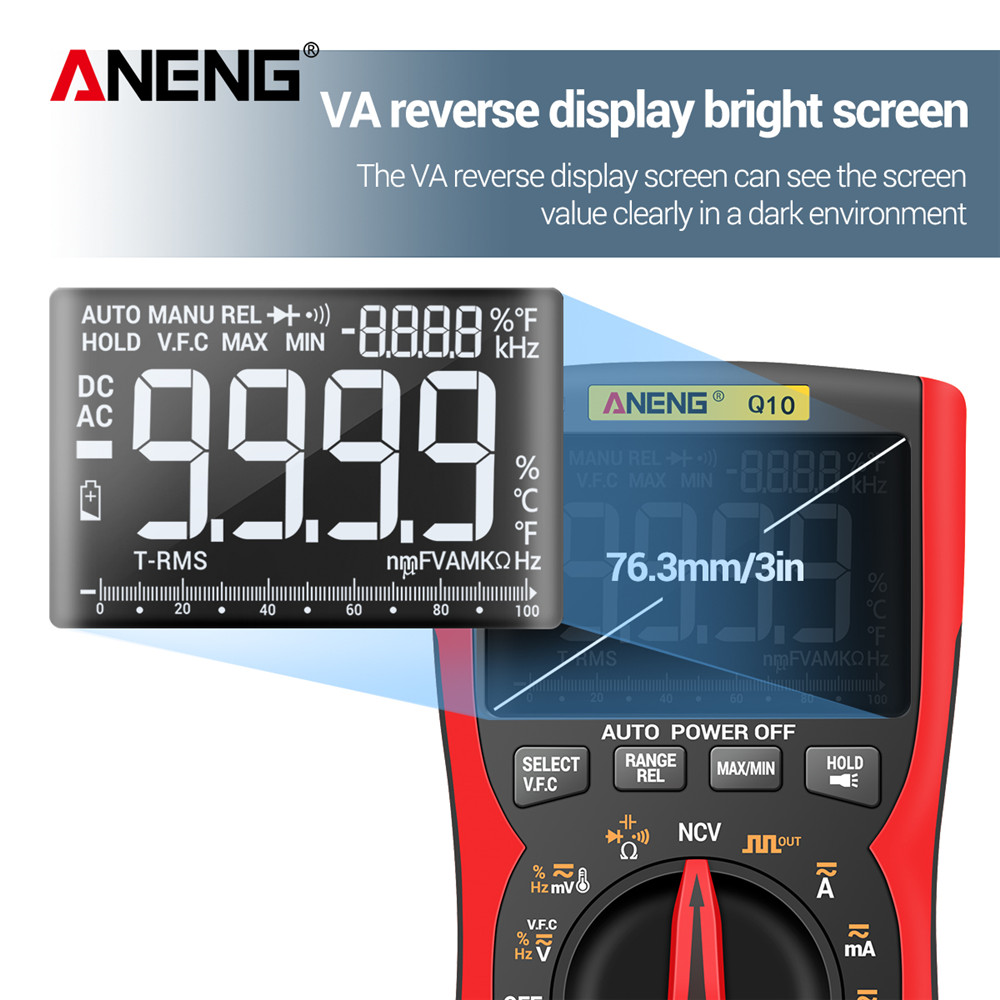

| Display (LCD) | 9999 | Range | automatic / manual |
| Material | ABS+TPE | Sampling rate | 3 times/sec |
| True RMS | yes | Data retention | yes |
| Screen backlight | yes | Low battery warning | yes |

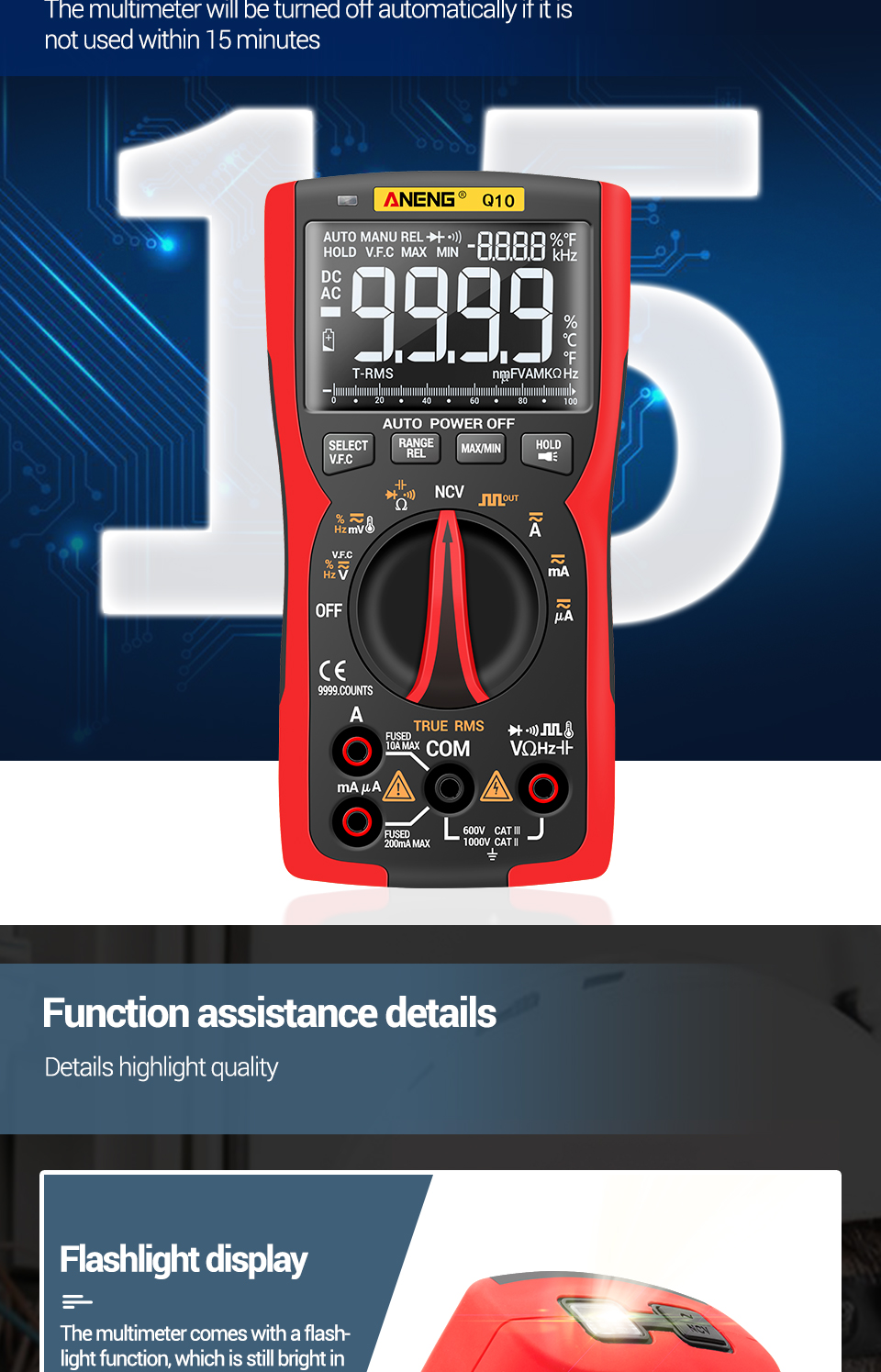

| Automatic shut-down | yes | type of battery | 3 * 1.5V AA battery (not included) |
| Features | Range | Precision | AC frequency response |
| DC Current | 9.999A/999.9mA | ±(1.0%+3) | - |
| DC Current | 99.99mA/9.999mA/99.99μA/999.9μA | ±(0.8%+3) | - |
| AC current | 9.999A/999.9mA | ±(1.2%+3) | 40Hz~1kHz |
| AC current | 99.99mA/9.999mA/99.99μA/999.9μA | ±(1.0%+3) | 40Hz~1kHz |
| DC voltage | 999.9mV/9.999V/99.99V/999.9V/9.999mV/99.99mV/999.9mV | ±(0.5%+3) | - |
| AC voltage | 999.9mV/9.999V/99.99V/750.0V/9.999mV/99.99mV/999.9mV | ±(1.0%+3) | 40Hz~1kHz |
| Resistance | 99.99Ω | ±(1.0%+3) | - |
| Resistance | 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ | ±(0.5%+3) | - |
| Resistance | 9.999MΩ | ±(1.5%+3) | - |
| Resistance | 99.99MΩ | ±(3.0%+5) | - |
| Capacitance | 9.999nF | ±(5.0%+20) | - |
| Capacitance | 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF | ±(2.0%+5) | - |
| Capacitance | 9.999mF | ±(5.0%+5) | - |
| Frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz | ±(0.1%+2) | - |
| Temperature | (-20~1000)℃ / (-4~1832)℉ | ±(2.5%+5) | - |
| Duty cycle | 1%~99% | diode | yes |
| On and off | yes | NCV | yes |
| working environment | temperature | 0~40℃ | |
| humidity | ＜75% |

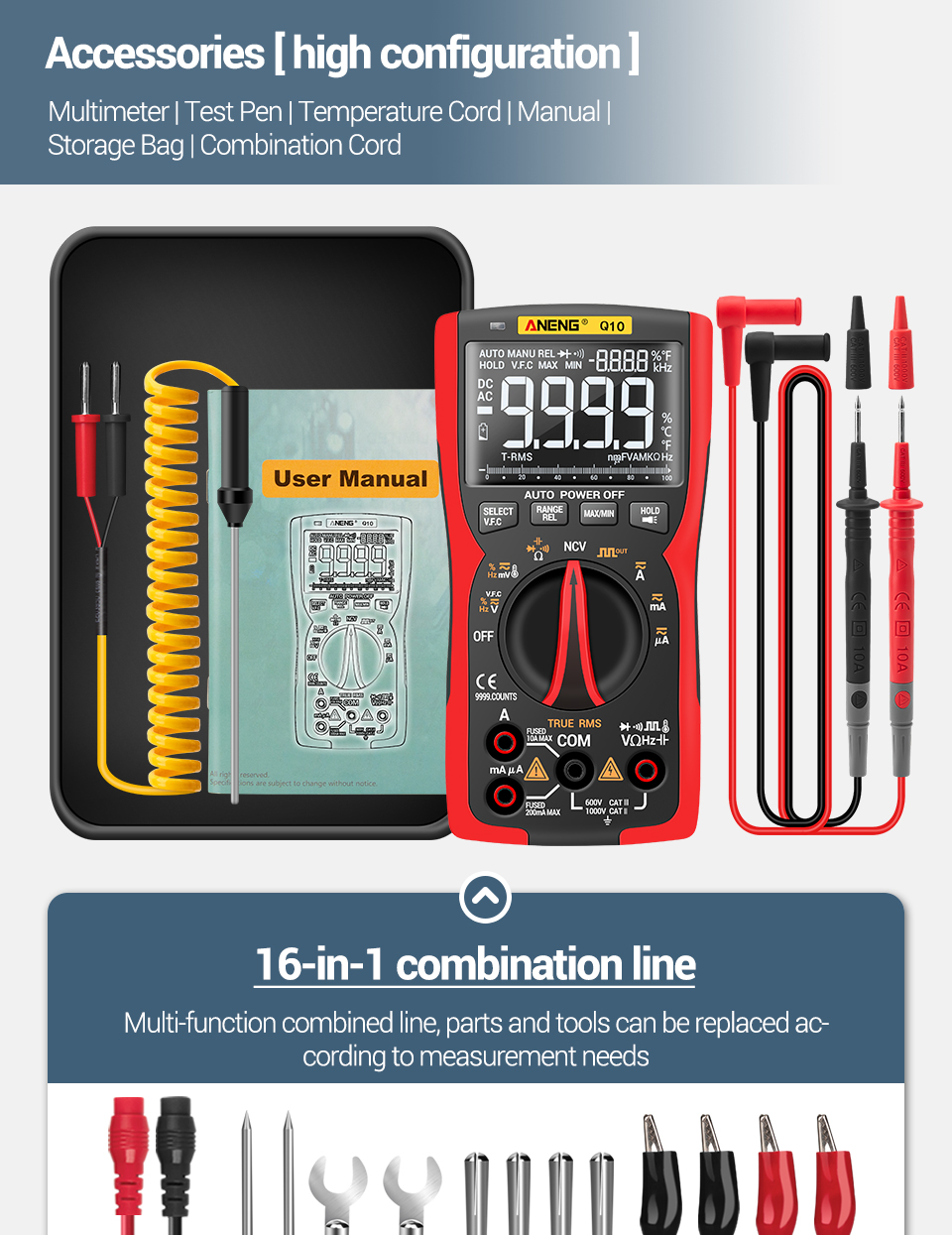

Package:

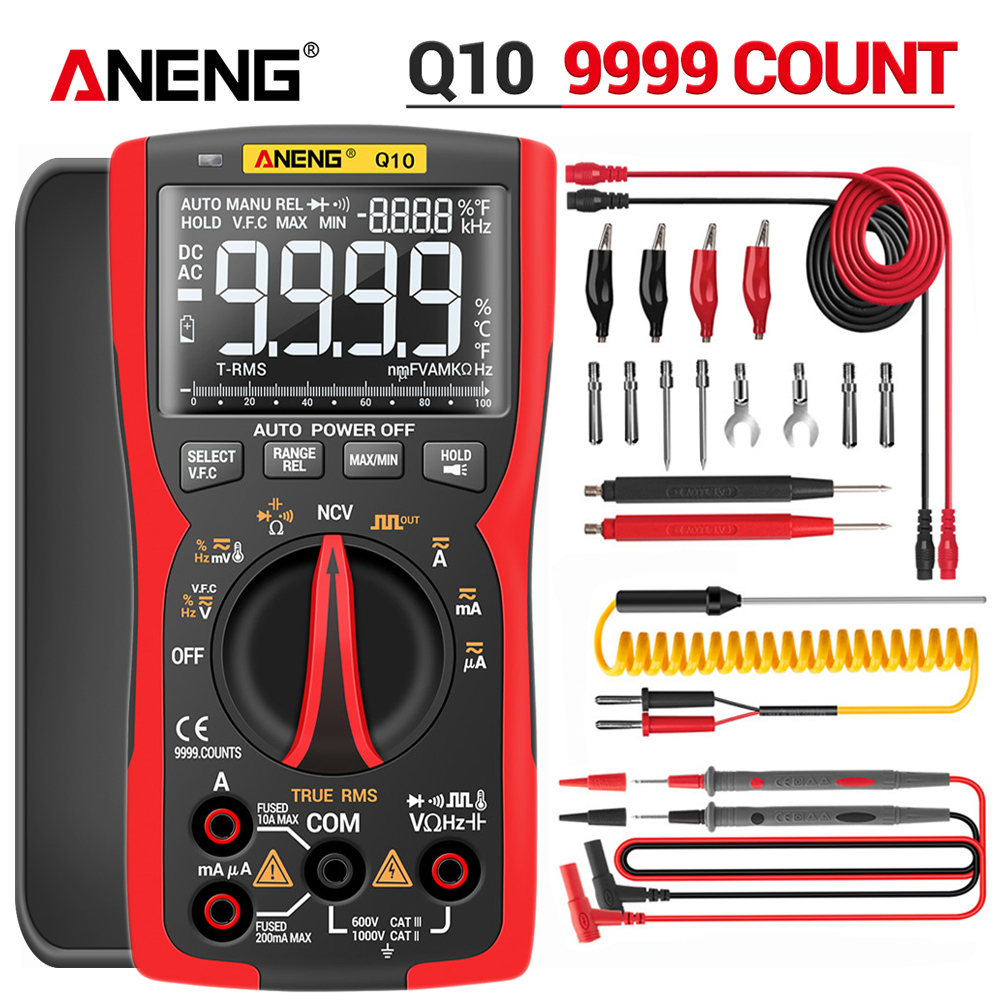

1 * ANENG Q10 Digital Multimeter

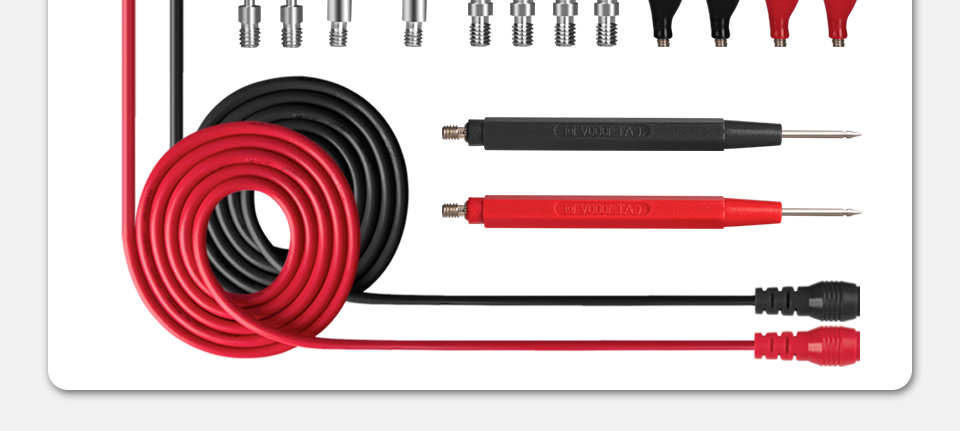

2 * Test lead wire
1 * Thermocouple
1 * Manual
1 * Cloth bag(According to the choice)
1 * 16 in 1 combination line(According to the choice)
