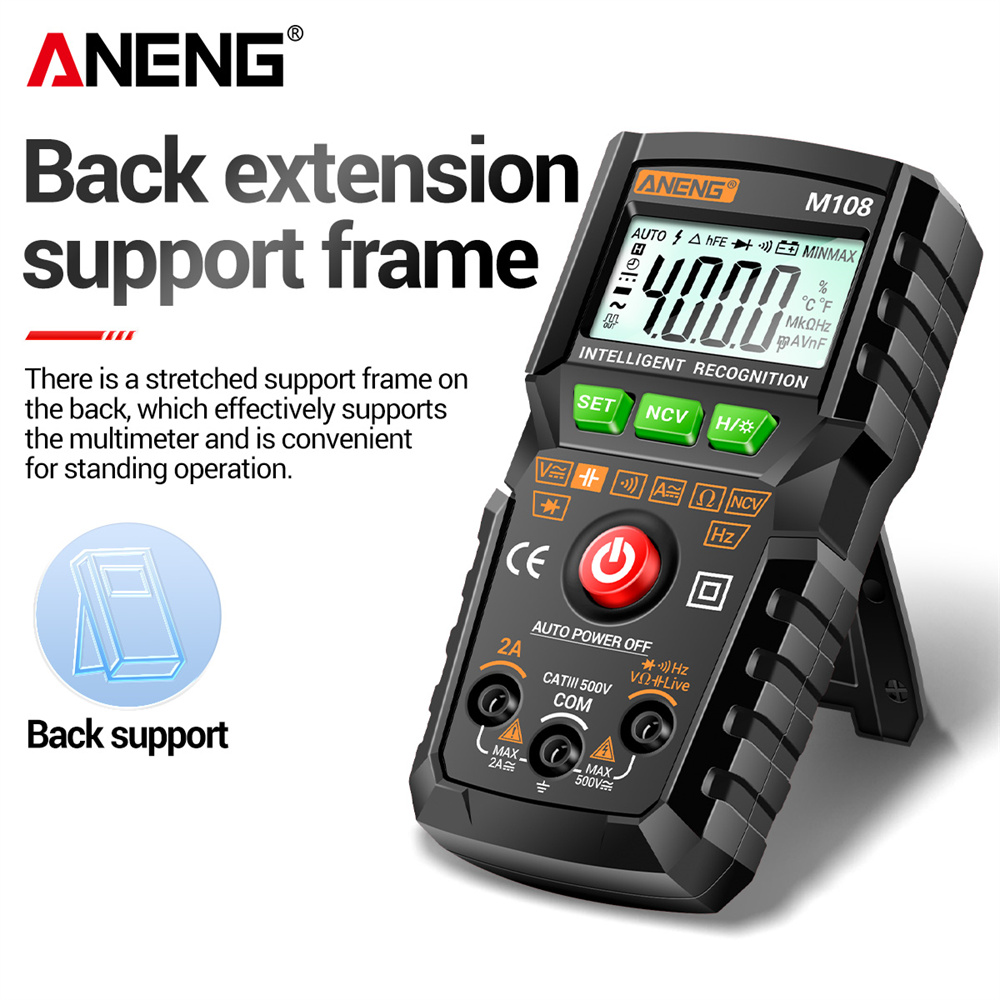

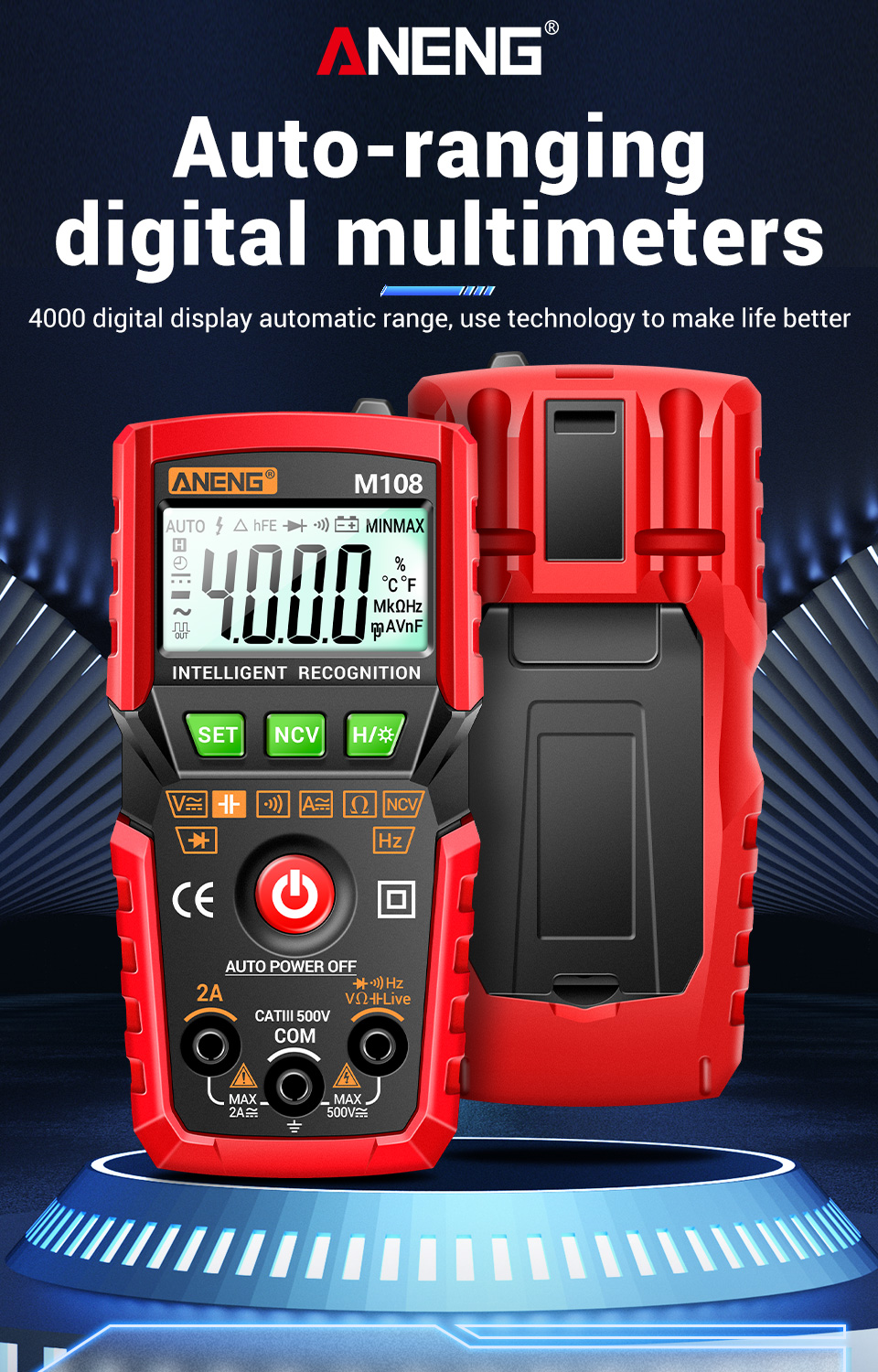

M108 is a battery-powered,auto-ranging, mini digital multimeter with a 4000 counts LCD display.

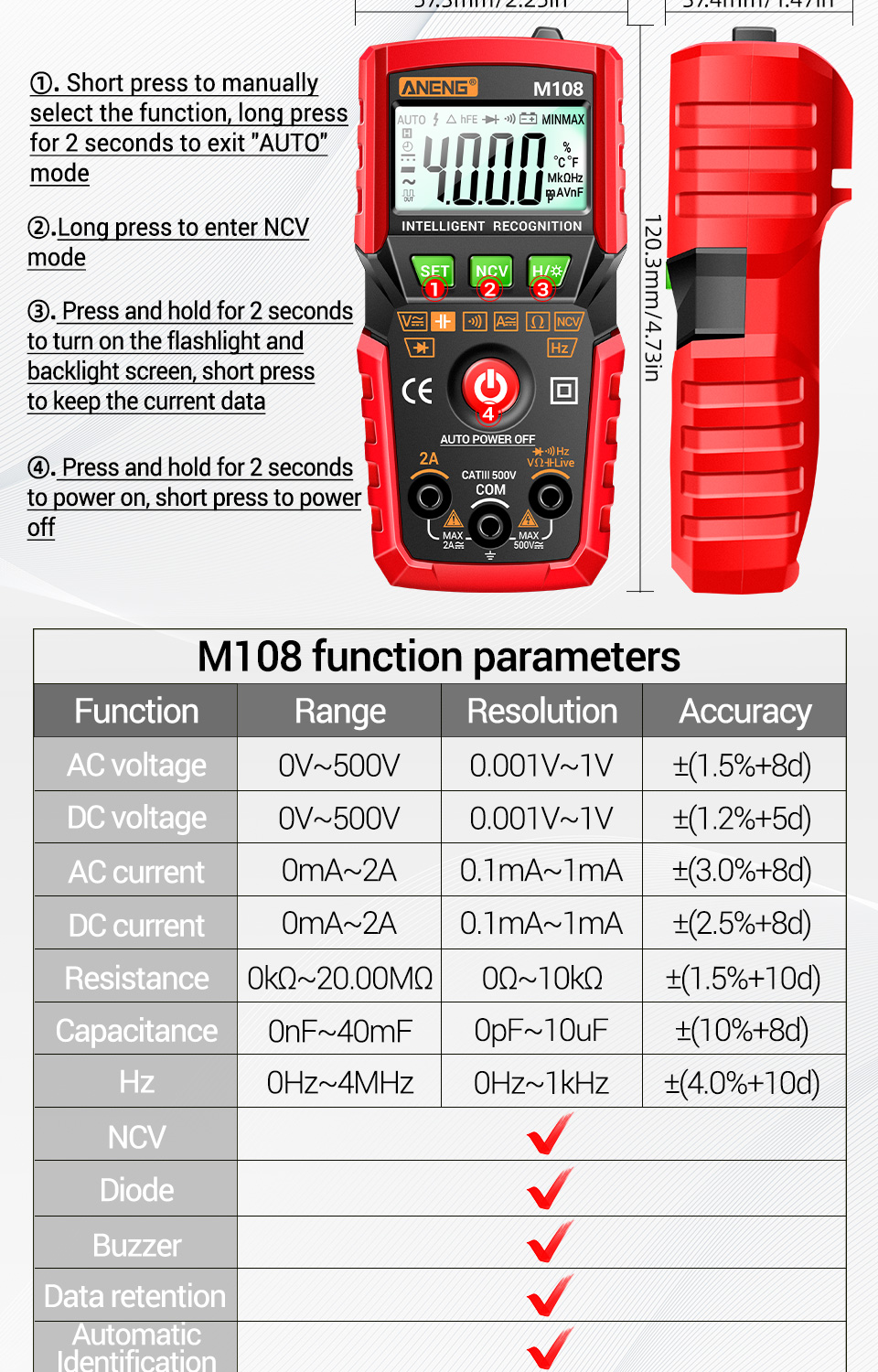

Features(M108):
| Brand | ANENG | Modle | M108 |
| Ranging | Auto | Display | 4000 counts |
| Material | ABS/PVC | Ture RMS | NO |
| Diode | YES | Resistiance | YES |
| Capacitance | YES | Coutinuity | YES |

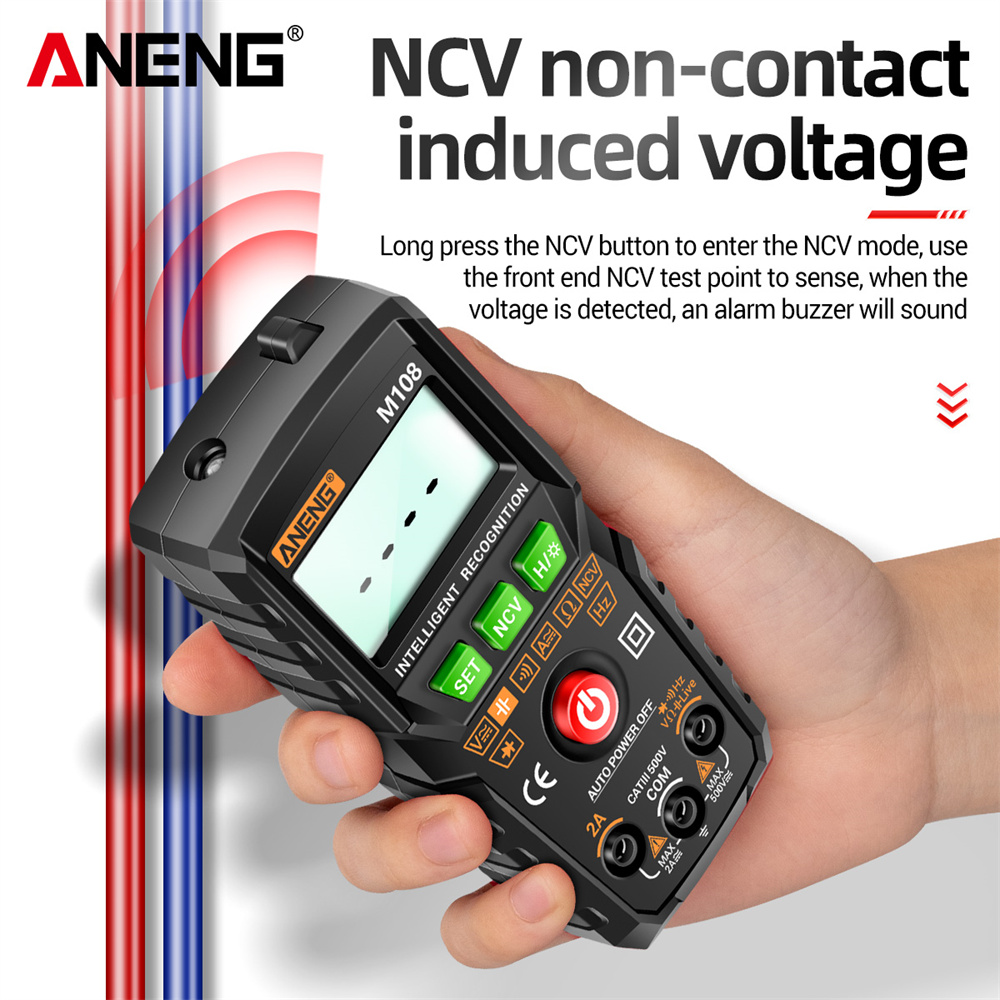

| NCV | YES | Data Hold | YES |

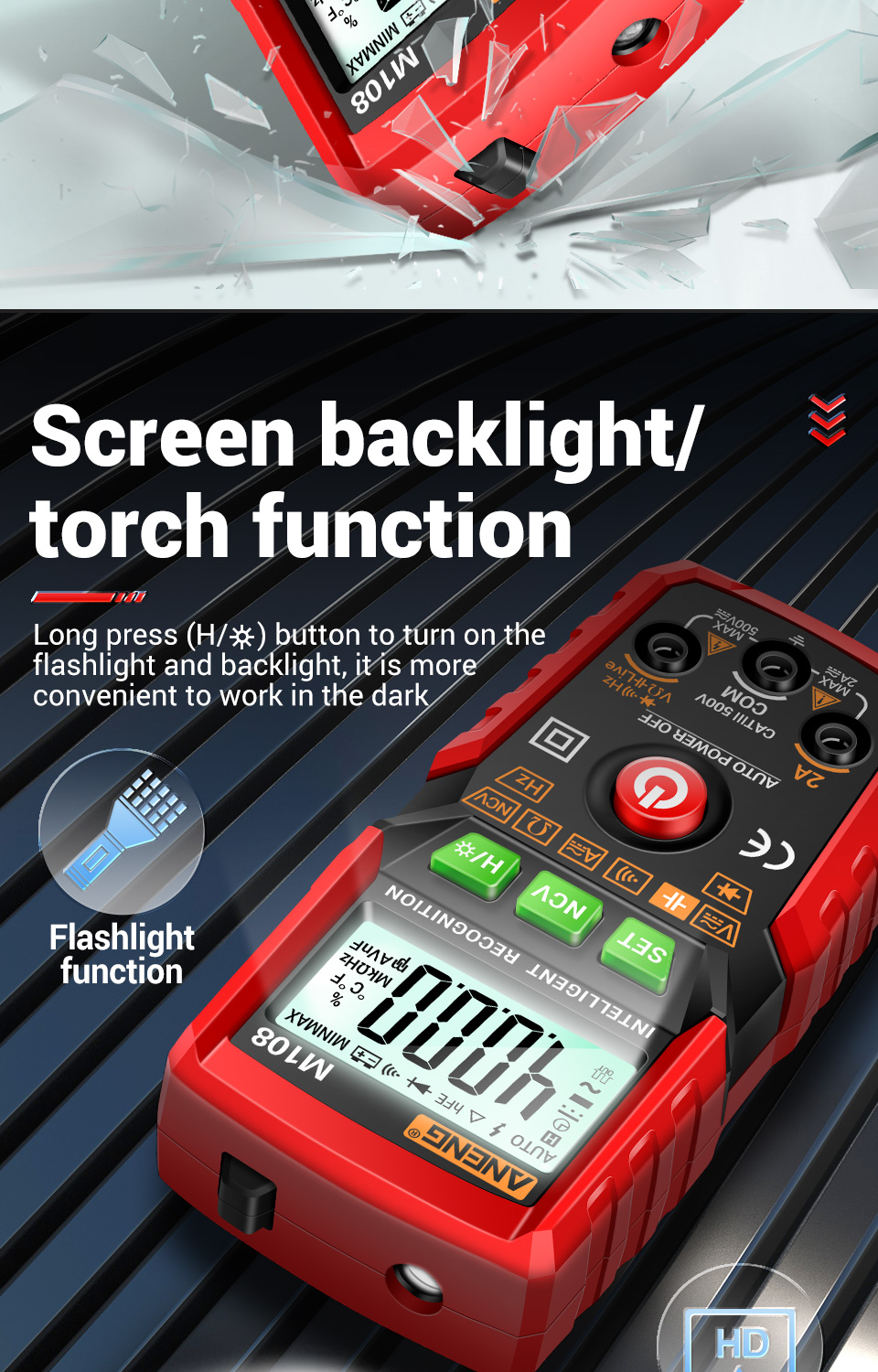

| Backlight | YES | Flashlight | YES |
| Update Rate | YES | Power Supply | 2 * 1.5V AAA (not included) |
| Low Battery Indication | YES | Auto Power Off | YES |

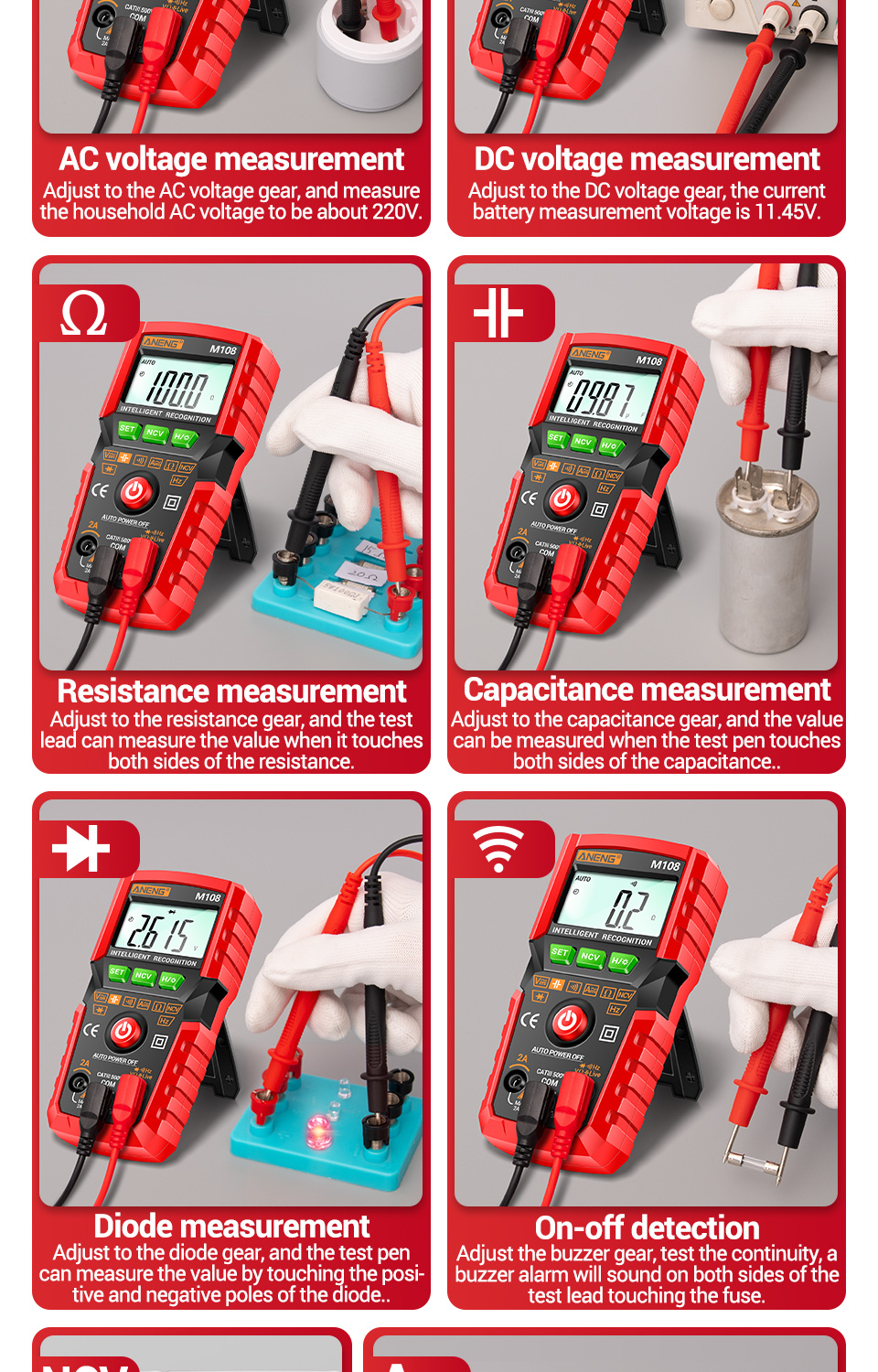

| Range | Accuracy | |
| DC Voltage | 4V/40V | ±(1.0%+5d) |
| 400V/500V | ±(1.2%+5d) | |
| AC Voltage | 4V/40V | ±(1.2%+5d) |
| 400V/500V | ±(1.5%+8d) | |

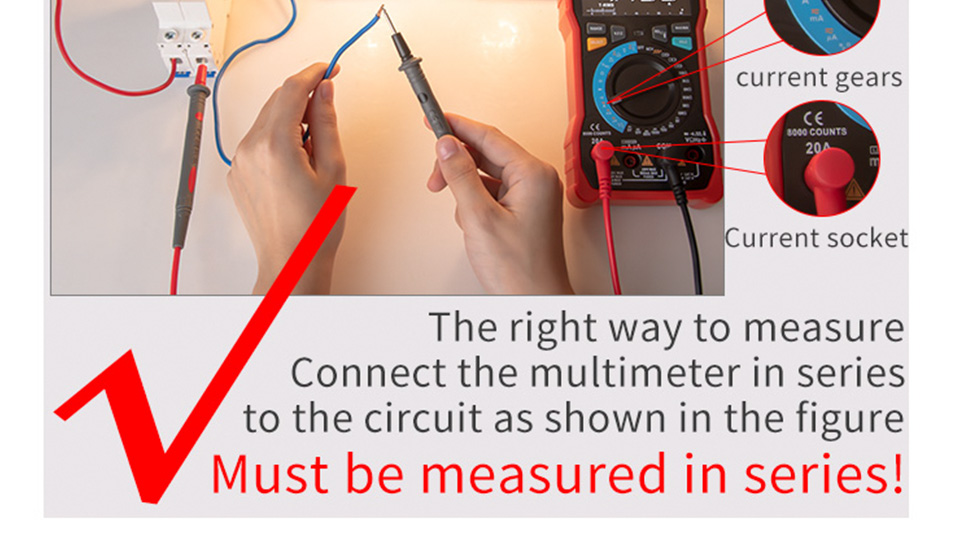

| DCA | 400mA/2A | ±(1.5%+5d)/±(2.5%+8d) |
| ACA | 400mA/2A | ±(1.8%+6d)/±(3.0%+8d) |
| Capacitance | 4nF/40nF/400nF/4uF/40uF | ±(3.0%+5d) |
| 400uF | ±(3.5%+5d) | |
| 4mF | ±(5.0%+6d) | |
| 40mF | ±(10.0%+8d) | |
| Resistiance | 4.000kΩ | ±(1.5%+10d) |
| 40.00kΩ/400.0kΩ/4.000MΩ | ±(1.0%+5d) | |
| 20.00MΩ | ±(1.5%+10d) | |
| Frequency | 400Hz/4KHz/40KHz | ±(1.5%+5d) |
| 400kHz | ±(3.0%+5d) | |
| 4MHz | ±(4.0%+10d) |
| Operating Temperature | 0～40℃ |
Features(M107) :
| Brand | ANENG | Modle | M107 |
| Ranging | Auto | Display | 4000 counts |
| Material | ABS/PVC | Ture RMS | NO |
| Diode | NO | Resistiance | YES |
| Capacitance | NO | Coutinuity | YES |

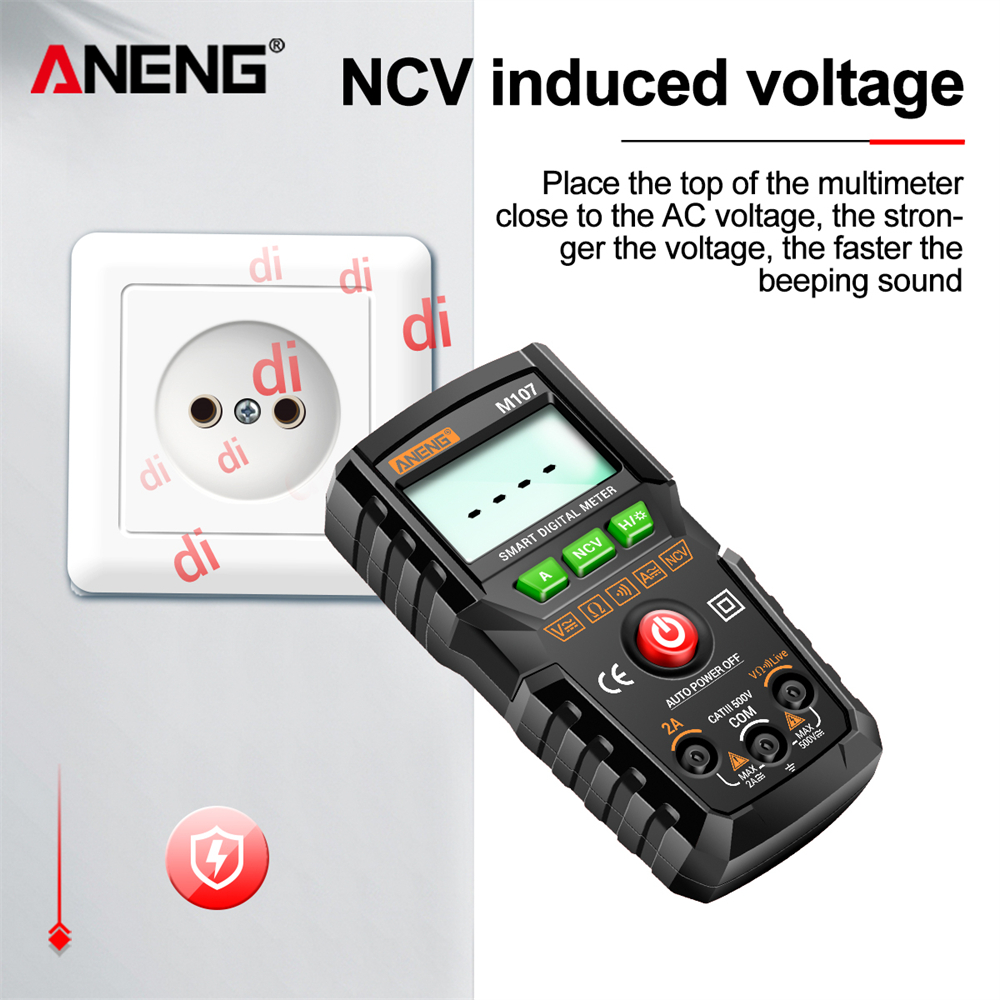

| NCV | YES | Data Hold | YES |
| Backlight | YES | Flashlight | YES |
| Update Rate | YES | Power Supply | 2 * 1.5V AAA(not included) |
| Low Battery Indication | YES | Auto Power Off | YES |
| Range | Accuracy | |
| DC Voltage | 4V/40V | ±(1.0%+5d) |
| 400V/500V | ±(1.2%+5d) | |
| AC Voltage | 4V/40V | ±(1.2%+5d) |
| 400V/500V | ±(1.5%+8d) | |
| DCA | 400mA | ±(1.5%+5d) |
| 2A | ±(2.5%+8d) | |
| ACA | 400mA | ±(1.8%+6d) |
| 2A | ±(3.0%+8d) | |
| Resistiance | 4kΩ | ±(1.5%+10d) |
| 40kΩ/400kΩ/4MΩ | ±(1.0%+5d) | |
| 20MΩ | ±(1.5%+10d) |

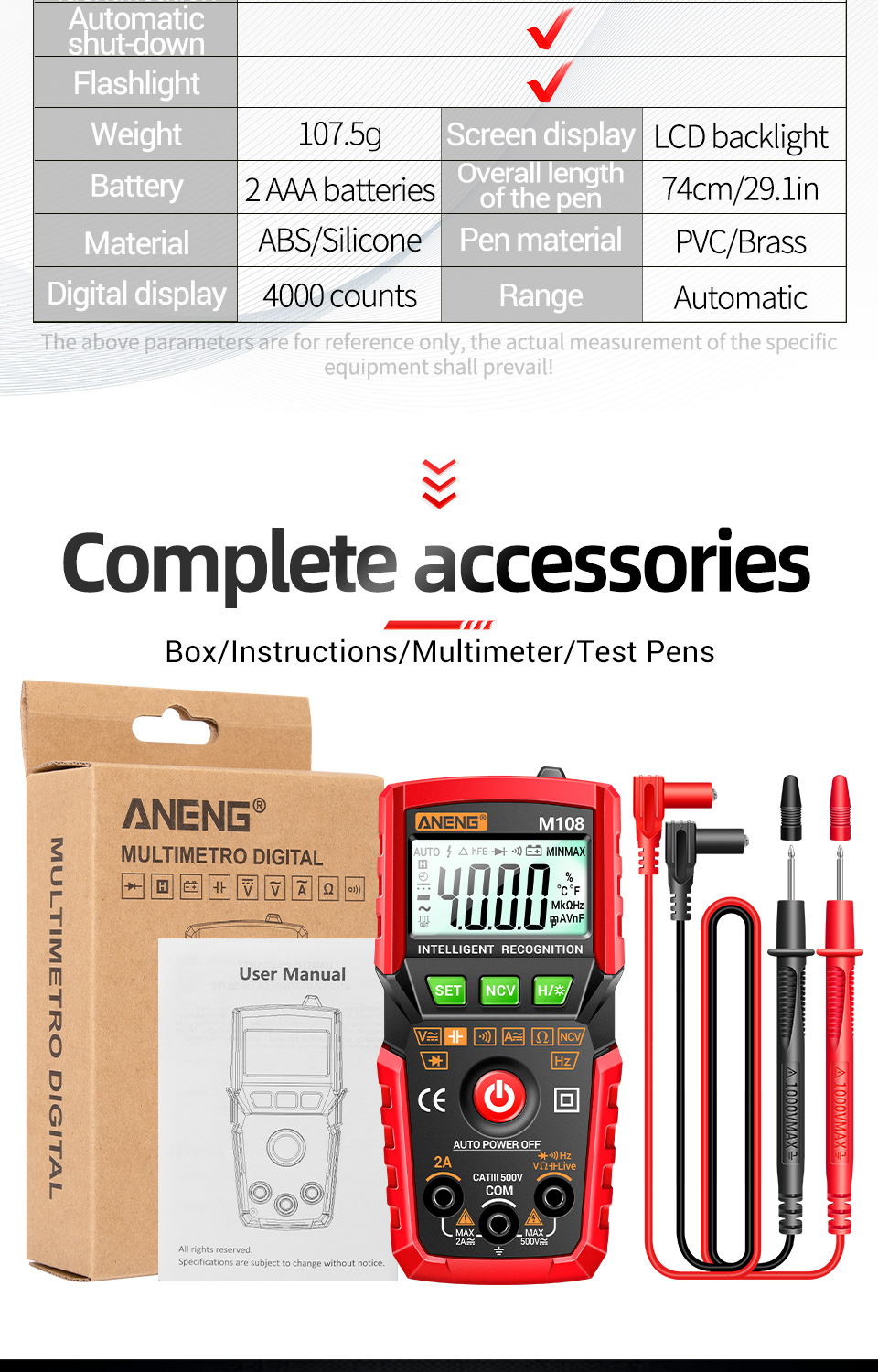

Packing List:
1 * User Manual

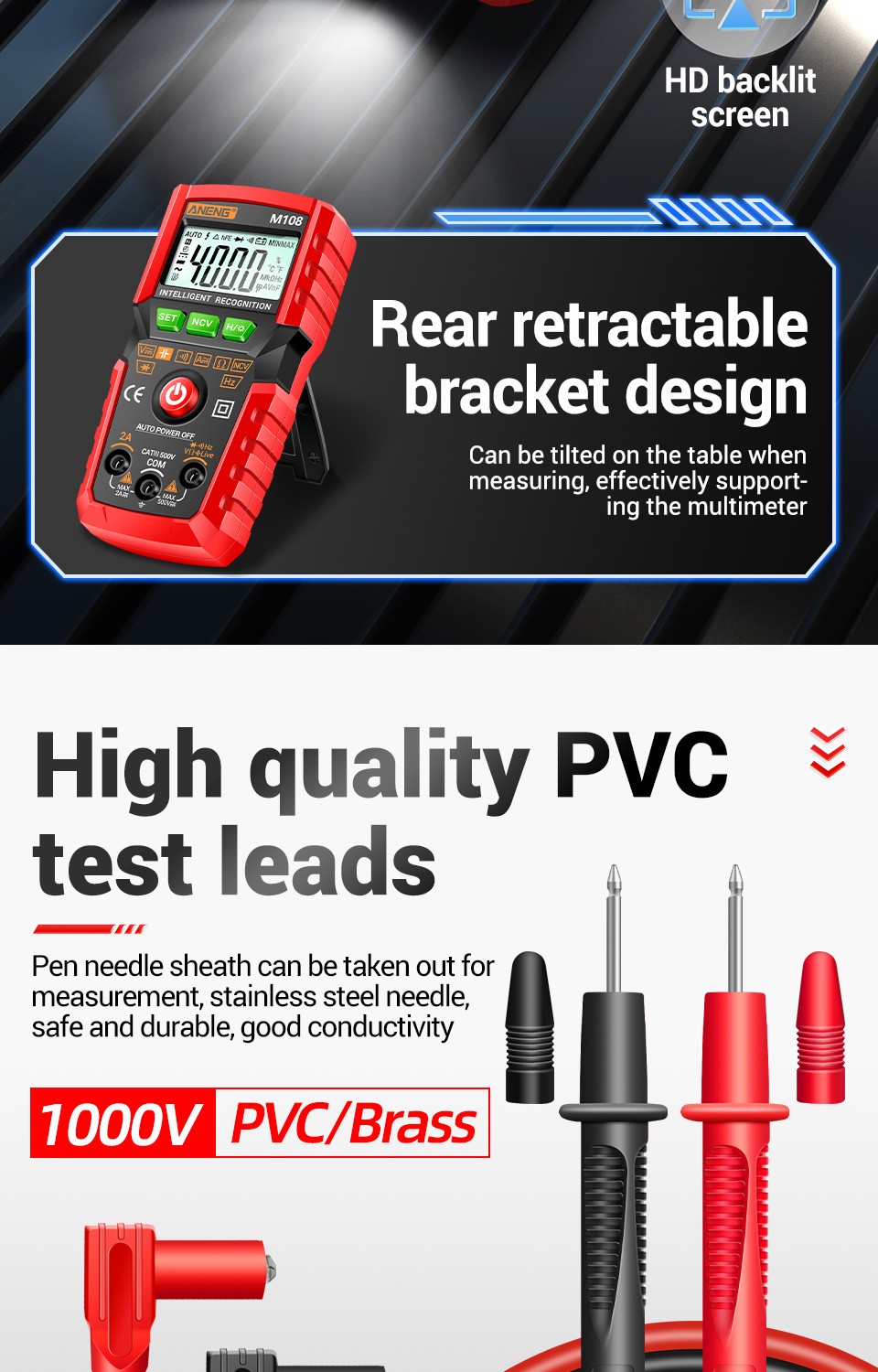

1 * Test leads
1 * M107/M108 Digital Multimeter
1 * 16pc Test probe (according to the choice)
1 * Storage bag (according to the choice)
