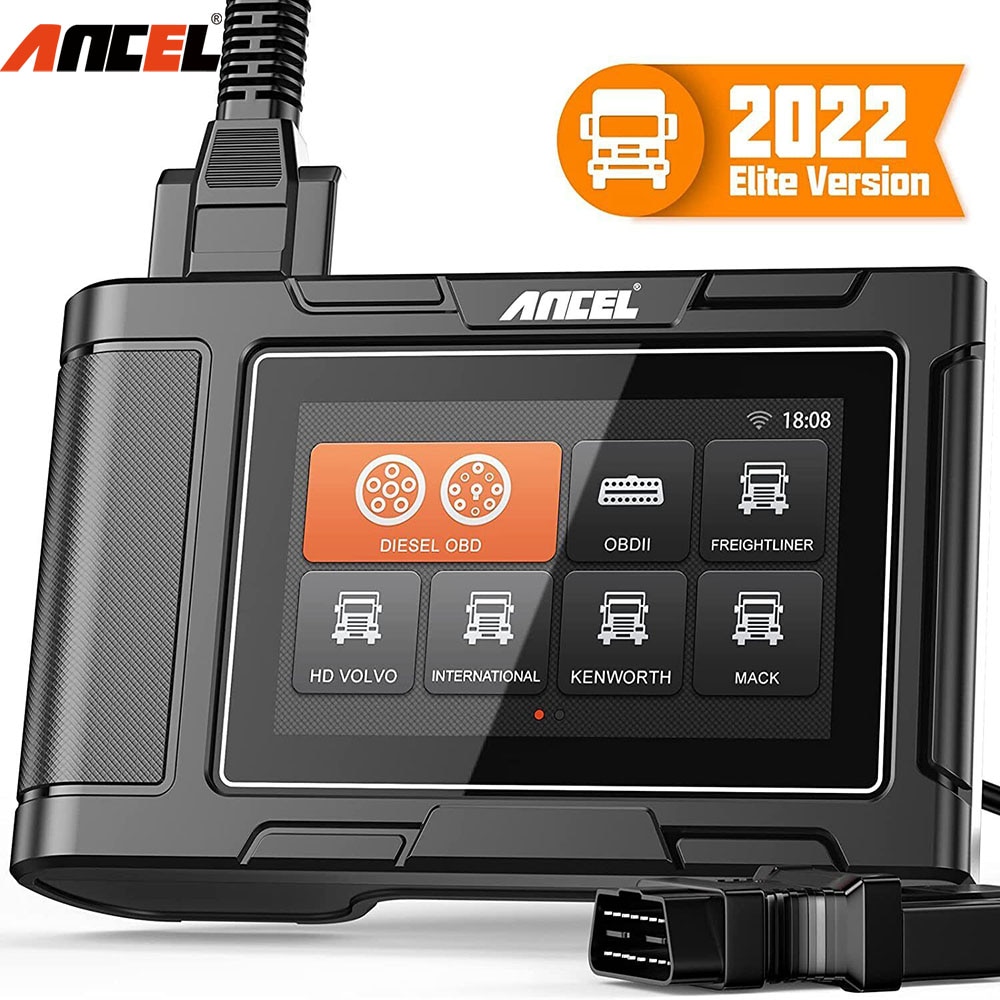

ANCEL HD3100 PRO Heavy Duty Truck Diagnostic Scanner

ANCEL HD3100 PRO Heavy Duty Truck Diagnostic Scanner Full System DPF Regeneration For Diagnostic Freightliner, Peterbilt, Kenworth, Ford, Volvo, Mack, International, etc

HD3100PRO is a full-system diagnosis developed for American heavy-duty Trucks. This scanner is a high-ranking code reader that supports private protocol in addition to standard diesel OBD protocols. Exclusive DPF regeneration-the nemesis of DPF blockage. Diversified one-key multi-functions and upgraded interface are also unimitation of the entry-level diagnostic tool on the market.

[All-system diagnosis] For American heavy duty trucks, being targeted for engine, transmission, body, chassis, ABS, SRS, SAS, ESP, TPMS, EPB, fuel system, light system, etc.. Not only is it handy in solving trouble codes of full-system for diesel trucks comprehensively, but also in eliminating the error codes for the engine system of non-diesel viecle and light Trucks with the complete OBD2 functions.
[DPF Regeneration] Accurate and effective soluting common DPF congestion of diesel trucks with Ancel HD3100pro. Compatible with diesel trucks which use EGR and SCR, two rear exhaust emission treatment technologies. Locating the key systems and torque-limiting cause due to unregularly DPF cleaning.
[Support private protocols] Targeting 7 most popular U.S. heavy duty trucks with independent menus, including the four main models, Freightliner, Peterbilt, Kenworth and Ford that comply with all standard protocols, and Volvo, Mack, International that apply with private protocols exclusively .Diesel OBD menus is a platform for 12V and 24V US diesel powered trucks and Class 4 to 8 heavy duty trucks that adapt to all standard protocols.
[Upgraded 5" LCD touch interface] Unlike entry-level heavy-duty card readers, the easy-to-understand menu interface, 800*480 high-definition and smooth interface switching make HD3100pro standing out in the truck market. With RAM 1GB and Flash 8GB, the obd2 scanner can accommodate vast data reports and model upgrade packages. 2.4GHz WIFI allows you to upgrade software wirelessly, freeing the trouble of data cable damage and loss.

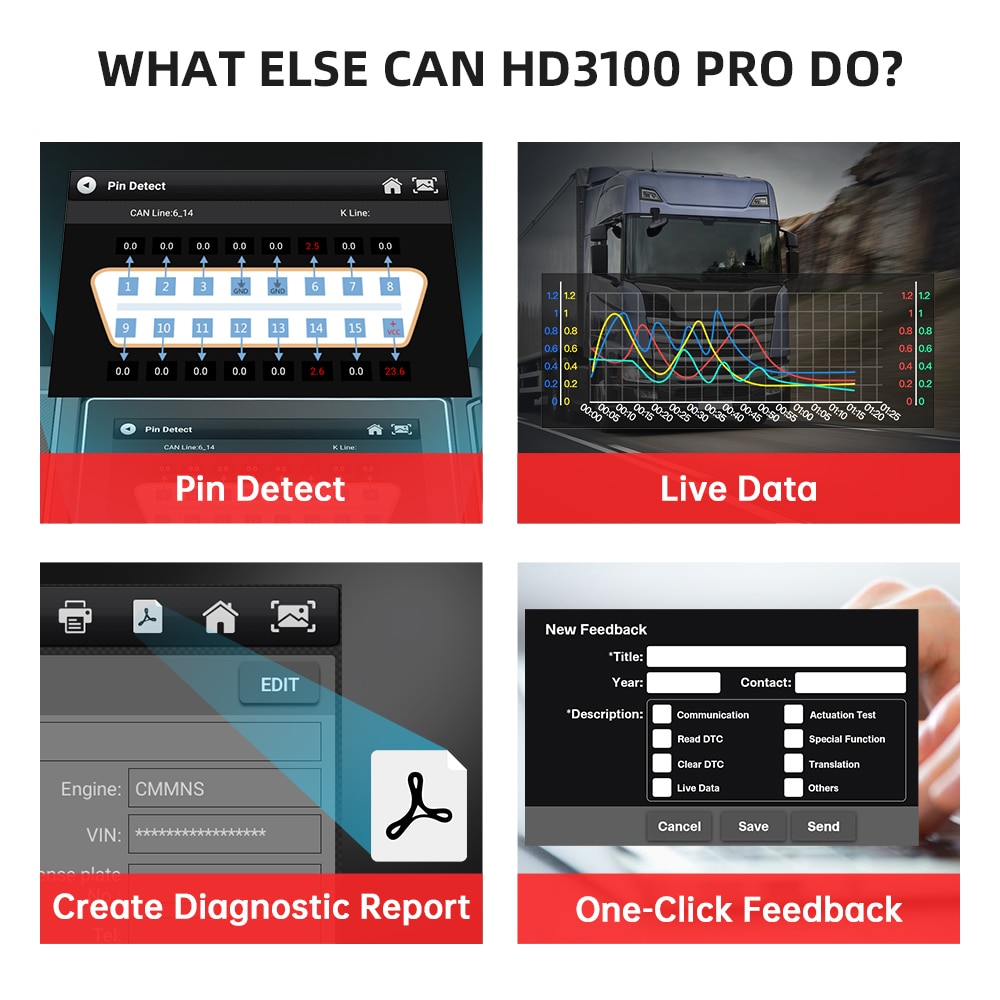

[Print report and Pin Detect] By marking the printed textured paper report, the data can be found and summarized more concisely. Report can G-mail to a trusted partner who can analyze together simultaneously. Pin Detect is used to automatically measure the voltage of the OBD diagnostic interface, and determine whether the pin positions of the K line and the CAN line are damaged. When the code reader is connected to the car and there is no response, this function come in handy.
[One-click to multi-function] Equipped with Android operating system,upgrading and activating software, capturing real-time data, and reporting difficult operations with one-click. The one-key multi-tasking quick operation is a valuable treasure that most brands do not have except the Ancel on nowadays market. Diversified features are definitely worth the money for you, a truck lover.

Ancel HD3100 Pro Full System Heavy Duty Truck Diagnostic Tool

This Ancel HD3100 Pro is a full system diesel truck scanner diagnostic tool, which allows you to read codes, clear codes, retrieve vehicle information and graph live data stream for all available control modules

ANCEL HD3100 Pro support DPF Regeneration

for HD Volvo,for Mack,for International

ANCEL HD3100 Pro 12V/24V Truck Diagnostic Scanner Support Full OBD2 Function

1.Read and clear fault codes, turn-off malfunction indicator light (MIL)
2.O2 sensor test to check fuel efficiency and vehicle emission
3.Display freeze frame data and retrieve vehicle information
4.EVAP test for fuel tank system (Carbon canister test)
5.Read dynamic live datastream, able to store and playback
6.Display I/M readiness status (Non-continuously monitored system test )
7.Advanced On-board monitoring test
8.Support lifetime free upgrade

ANCEL HD3100 pro support Model List

This product integrates commercial vehicle OBD standard diagnostic protocols, including SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4 and ISO 27145-4.
Support Volvo, International, Mack private agreement, more professional than ordinary diesel code reader

All operations are one-click, so don't worry about not being able to operate anymore!

One-click screenshot: Screenshot after vehicle diagnosis is used as important evidence to judge whether the car is damaged. View the screenshot in "Data Management" with a one-click screenshot anytime you want.

One-click feedback: With this scan tool. If you have any diagnosis problem, just feedback us through this function, and ANCEL's professional technical team will provide you with an excellent solution.

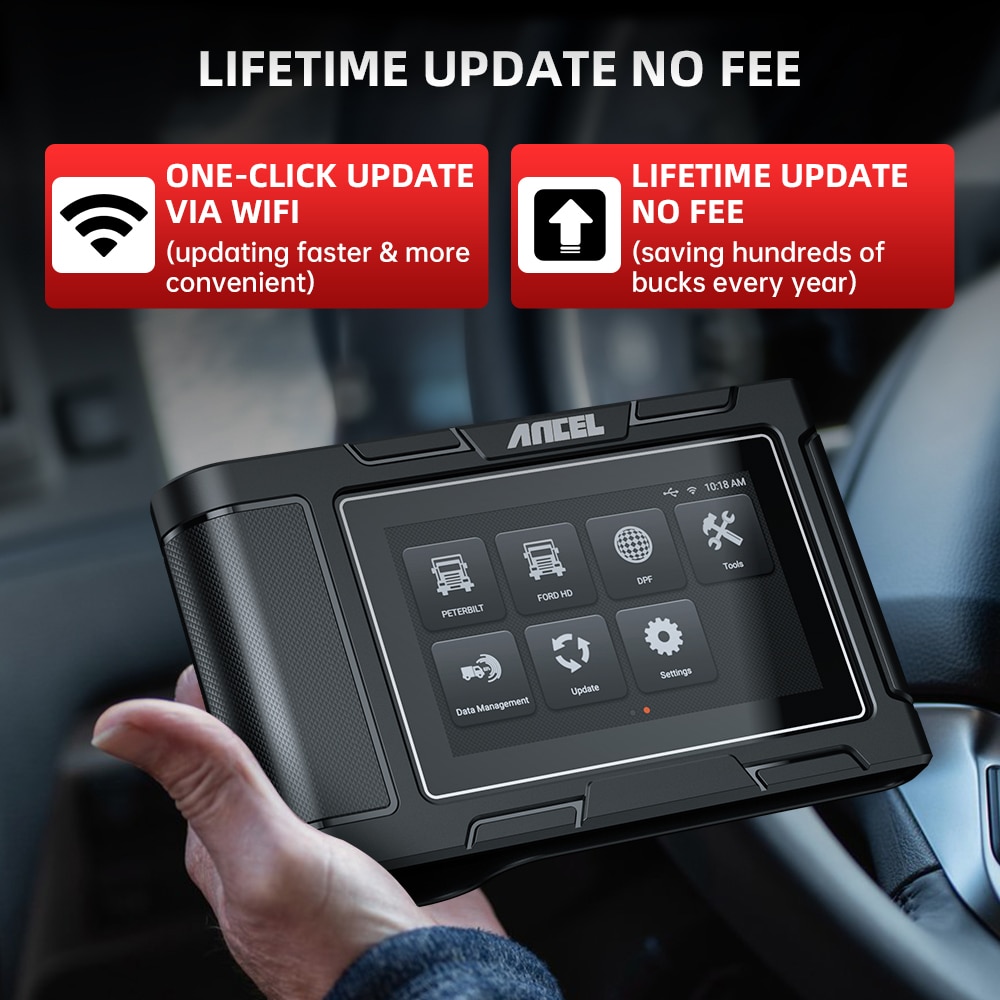

One-click WIFI update: With this diagnostic tool, updating the software with one-click via wifi isn't a dream, no need to update on the computer you can get the more latest models version, and fix bugs of this scanner.

One-click Activate: allowing you to get started your first truck diagnostic, fill in optional registration information without complex settings.

Product High Configuration Hardware

CPU Quad-Core ARM Cortex-A7
RAM 1GB
Flash 8GB
Display 5 inches LCD，resolution ratio 800*480
WIFI 802.11b/g/n 2.4GHz
USB interface Type C interface
Diagnose interface DB15 interface
Operating voltage DC 10V~36V/3A
Pinter Optional
Language: English,Spanish

Package List

1*ANCEL HD3100 Pro Truck Scanner
1*User Manual
1*Diagnostic Cable
1*OBD2 16 Pin Adapter
1*Diesel 6 Pin Adapter
1*Diesel 9 Pin Adapter

1*Printer(Option)
