ANCEL HD3100 HD3200 Truck Diagnostic Scanner

The ANCEL HD3100 is a diesel diagnostic tool specially developed according to the characteristics of the American diesel vehicle market. Its models cover the eight major diesel models in the US market: Freightliner, Kenworth, Peterbilt, International, Mack, Ford, HD Volvo etc. With this tool, you can easily read/delete fault codes and analyze real-time sensor data. And, it covers the engine, gearbox, ABS (brake) and chassis or body control of all major Trucks.

The ANCEL HD3200 heavy-duty Truck diagnostic scanner not only supports the private protocols diagnosis of FUSO/HINO/ISUZU/UD/Volvo/HYUNDAI/KIA, but also supports standard OBD protocols diagnosis of Freightliner, Kenworth, Peterbilt, International, Ford, Mack, including OBDII and HDOBD

ANCEL HD3100/HD3200 support 12V/24V Truck and 12V Cars

Please enter the menu "OBD-II" if you want to diagnostic 12V cars.
Please kindly note that you should enter menu "Diesel OBD" if you want to diagnose heavy duty trucks.

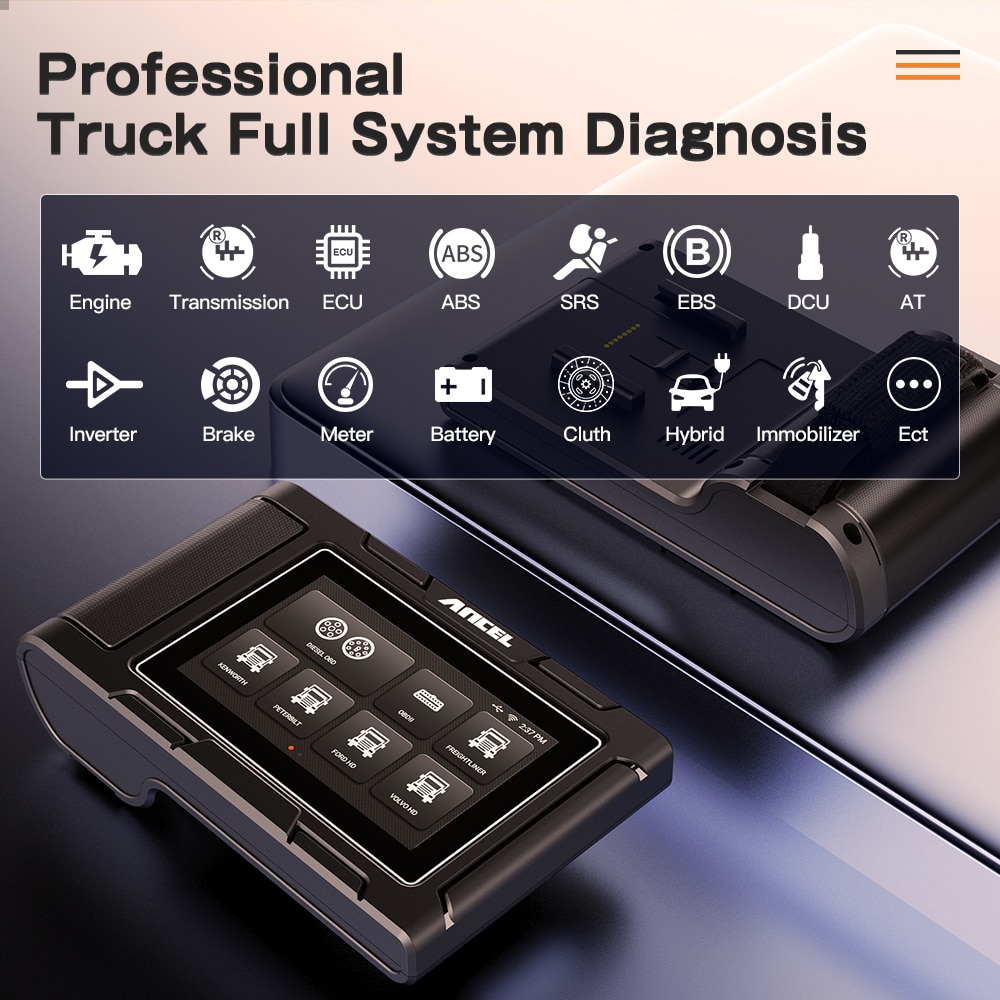

Ancel HD3100/HD3200-Full System Heavy Duty Truck Diagnostic Tool

This Ancel HD3100/HD3200 is a full system diesel truck scanner diagnostic tool, which allows you to read codes, clear codes, retrieve vehicle information and graph live data stream for all available control modules

ANCEL HD3200(For Asian Truck) support DPF Regeneration&Oil Reset Service

DPF Regeneration:for Hino,for ISUZU, for Fuso, for UD, for Hyundai, fro Kia
Oil Reset Service:for Hino,for ISUZU,for Fuso,for Kia,for Hyundai

ANCEL HD3100/HD3200 12V/24V Truck Diagnostic Scanner Support Full OBD2 Function

1.Read and clear fault codes, turn-off malfunction indicator light (MIL)
2.O2 sensor test to check fuel efficiency and vehicle emission
3.Display freeze frame data and retrieve vehicle information
4.EVAP test for fuel tank system (Carbon canister test)
5.Read dynamic live datastream, able to store and playback
6.Display I/M readiness status (Non-continuously monitored system test )
7.Advanced On-board monitoring test
8.Support lifetime free upgrade

Graph Live Data Stream

ANCEL HD3100(For US Truck) support Model List

For Cars(12V):
Supports SAE J1850PWM, SAE J1850 VPW, IS0 14230-4, IS0 9141-2,IS0 15765-4, SAE J1708, SAE J1939, OBDII
Support standard OBDII protocol cars, like following cars.
Car (Domestic): Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, GMC, Lincoln, Jaguar, Jeep, Pontiac, Saturn

Car (Europe): Audi, Bentley, BMW, Fiat, Jaguar, Land Rover, Mercedes Benz, Mini, Porsche, SAAB, Smart, Sprinter, Volvo, VW

Car (Asia): Acura, Daewood, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitshubishi, Nissan, Scion, Subaru, Suzuki, Toyota;

Pickup (or Van): Silverado, Corolado, Ford (F150-750), Ford E-series, Dodge RM 1500-5500, GMC, Nissan Frontier, Toyota

For Truck(12V/24V):
Freightliner,Kenworth,Peterbilt,International,Mack,Ford, HD Volvo

ANCEL HD3200(For Asian Truck) Support Truck List

It supports with FUSU, HINO, ISUZU, KIA, UD, VOLVO, HYUNDAI……

The only code reader on the market with the proprietary protocol of these car models, with more powerful diagnostic functions. For example, other brands of diesel scanners can also support diagnosis HINO and Isuzu, they can only support models with J1939 protocol after 2012, but the HD3200 diagnostic scan tool can support Hino and Isuzu with the private protocol from 1998 to 2020.

All operations are one-click, so don't worry about not being able to operate anymore!

One-click Activate: This function allows for one-touch activating the scanner tool and you can quickly get started your first truck diagnostic, registration information is optional to fill in. There are no complex settings making it a user-friendly auto scanner.

One-click Screenshot: To save important information about vehicle diagnosis, you can take one click screen capture, and view the screenshots in “Data Management”.

One-click Feedback: This diagnostic tool supports one-click feedback. You can give us your feedback via this function if you have diagnostic problems, ANCEL professional technical team will provide you with excellent solutions.

One-click WIFI Update: No need to update on computer. By connecting wifi, it will automatically search for the latest update programe, just click update, you will get the latest version (more car models, bug fix) of this scanner. You will enjoy lifetime update through one-key function.

Pin Detect Function

This function mainly automatically measures the voltage of the OBD diagnostic interface, and judges the pin positions of the K line and the CAN line.

Diagnostic Report Print&Share

HD3200(For Asian Truck )/HD3100(For US Truck) scanner supports the printing function, which can print diagnostic report data such as vehicle information, fault codes, and data streams, and can also print software interface.

You can share the health report of your car with others via email, and you can also send it to yourself. which is very convenient.

Note: The printer and HD3200(For Asian Truck )/HD3100(For US Truck) diagnostic scanner are sold separately. If you need to print data, you can buy the printer at the bundle link below the link.

ANCEL HD3100/HD3200 Truck Diagnostic Scanner support Lifetime Free Update via WIFI

HD3100&HD3200 Need to be activated before use!

Step 1: Simply plug into the OBD port on your car and turn the ignition on, after the vehicle power on, the device will automatically startup;

Step 2: Connect WIFI. Go to Settings>WIFI;

Step 3: After successfully connecting to WIFI, go to Settings>Activation, click "Activate".

Note:
1. If the "Activation failed" prompt appears on the screen, please check whether your network connection is normal.

2. Click activate directly to use it, no registration is required.

Printer Hardware Parameter

Printer 80mm Thermal printer
Print speed 60mm/s
Effective print width 72mm
Print resolution 203dpi 1mm=8dots
Print paper specifications 80mm*30mm

Product High Configuration Hardware

CPU Quad-Core ARM Cortex-A7
RAM 1GB
Flash 8GB
Display 5 inches LCD，resolution ratio 800*480
WIFI 802.11b/g/n 2.4GHz
USB interface Type C interface
Diagnose interface DB15 interface
Operating voltage DC 10V~36V/3A
Pinter Optional

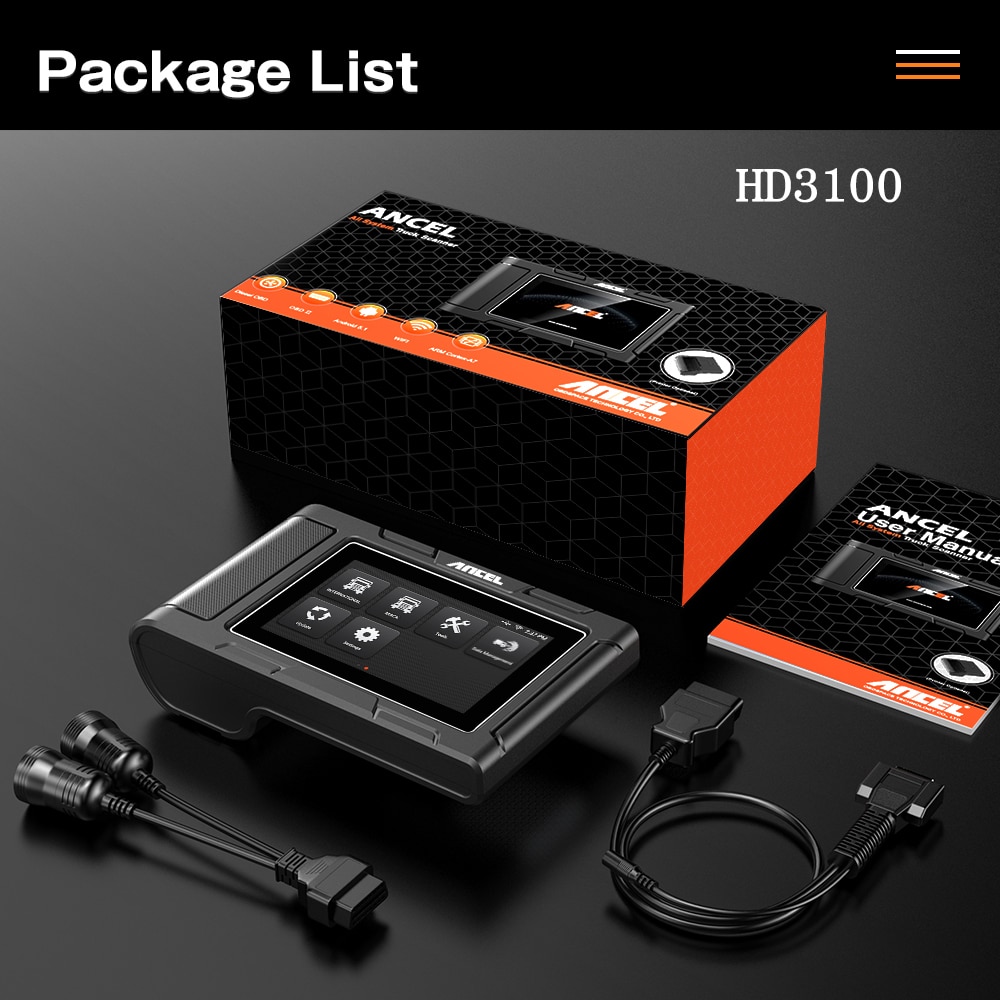

HD3100 Package List

1pc x ANCEL HD3100
1pc x Packing box
1pc x User Manual
1pc x 6pin & 9pin Connector For Trucks
1pc x 16pin OBD2 Connector For Cars

HD3200 Package List

1 * HD3200 Diagnostic Scan Tool
1 * Main Test Line
1 * 6 Pin & 9 Pin Connector
1* OBDII-16 Pin connector
1 * Hyundai-Diesel OBD-16 Pin Connector
1 * HD3200 Scanner User Manual
