AD805 Car Electrical Circuit Tester
AD805 Car Electrical Circuit Tester Probe 5V-30V Digital Display Circuit Test Pen Car Circuit Tester Lamp Voltage Test Pen
AD805 Car Electrical Circuit Tester Probe 5V-30V Digital Display Circuit Test Pen Car Circuit Tester Lamp Voltage Test Pen is a one of our AD805 Car Electrical Circuit Tester Tools, you can buy AD805 Car Electrical Circuit Tester Probe 5V-30V Digital Display Circuit Test Pen Car Circuit Tester Lamp Voltage Test Pen from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150
images of AD805 Car Electrical Circuit Tester Probe 5V-30V Digital Display Circuit Test Pen Car Circuit Tester Lamp Voltage Test Pen
DO YOU HAVESUCH TROUBLES ?
On the way to work/ during the trip, your car suddenly broke down,around 4s shop with time, effort, and money?around 4s shop with time, effort, and money?
Frequent failures
Broken down halfway
4s maintenance is too expensive
AD805 Car Electrical Circuit Tester Power Probe 5V-30V Digital Display Auto Car Circuit Tester Lamp Voltage Test Pen

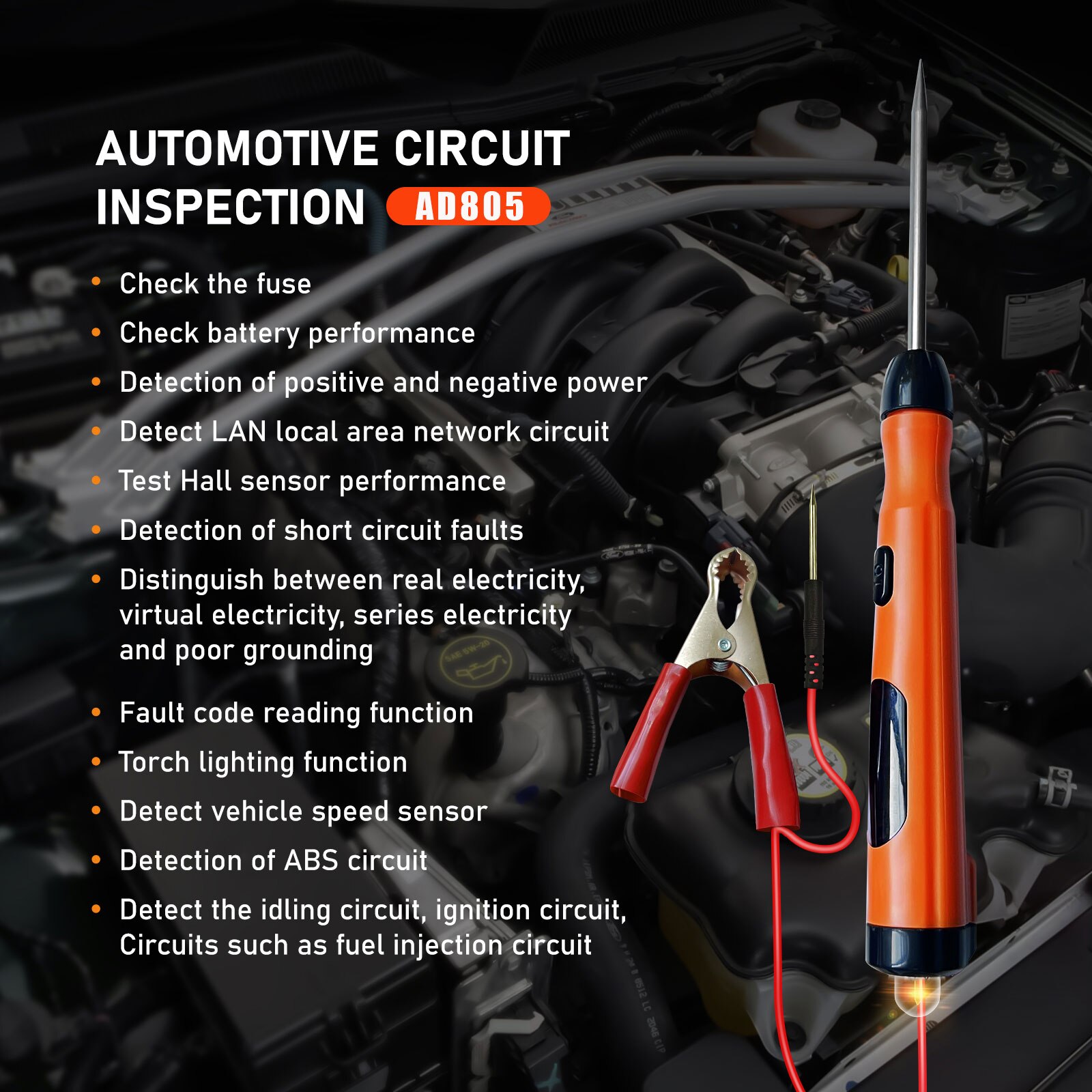

AUTOMOTIVE CIRCUITINSPECTION AD805
Check the fuse
Check battery performance
Detection of positive and negative power
Detect LAN local area network circuit
Test Hall sensor performance
Detection of short circuit faults
Distinguish between real electricity,and poor grounding and poor grounding
Fault code reading function
Torch lighting function
Detect vehicle speed sensor
Detection of ABS circuit
Detect the idling circuit, ignition circuit,Circuits such as fuel injection circuit
Features
1. Voltage measurement
2. Positive and negative direction detection
3. Frequency prediction
The new multifunctional electric tester makes up for the various shortcomings of the existing car repair electric tester
1.Voltage measurement
2.Bulb measurement
3.Load voltage measurement with bulb
4.Pulse signals such as Hall sensor, ignition pulse, fuel injector pulse, fuel carbon canister solenoid valve, etc.

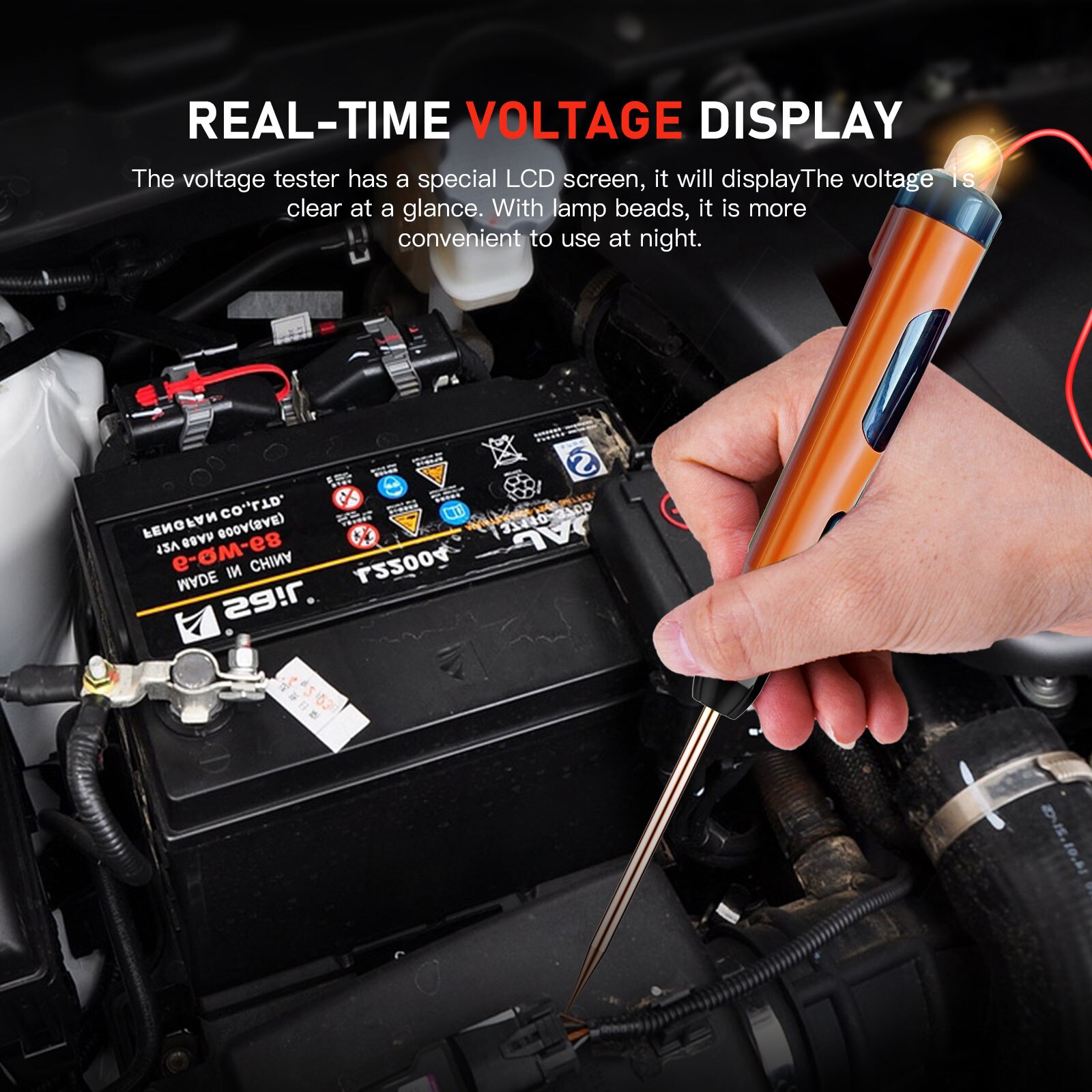

REAL-TIME VOLTAGE DISPLAY
clear at a glance. With lamp beads, it is more convenient to use at night.convenient to use at night.

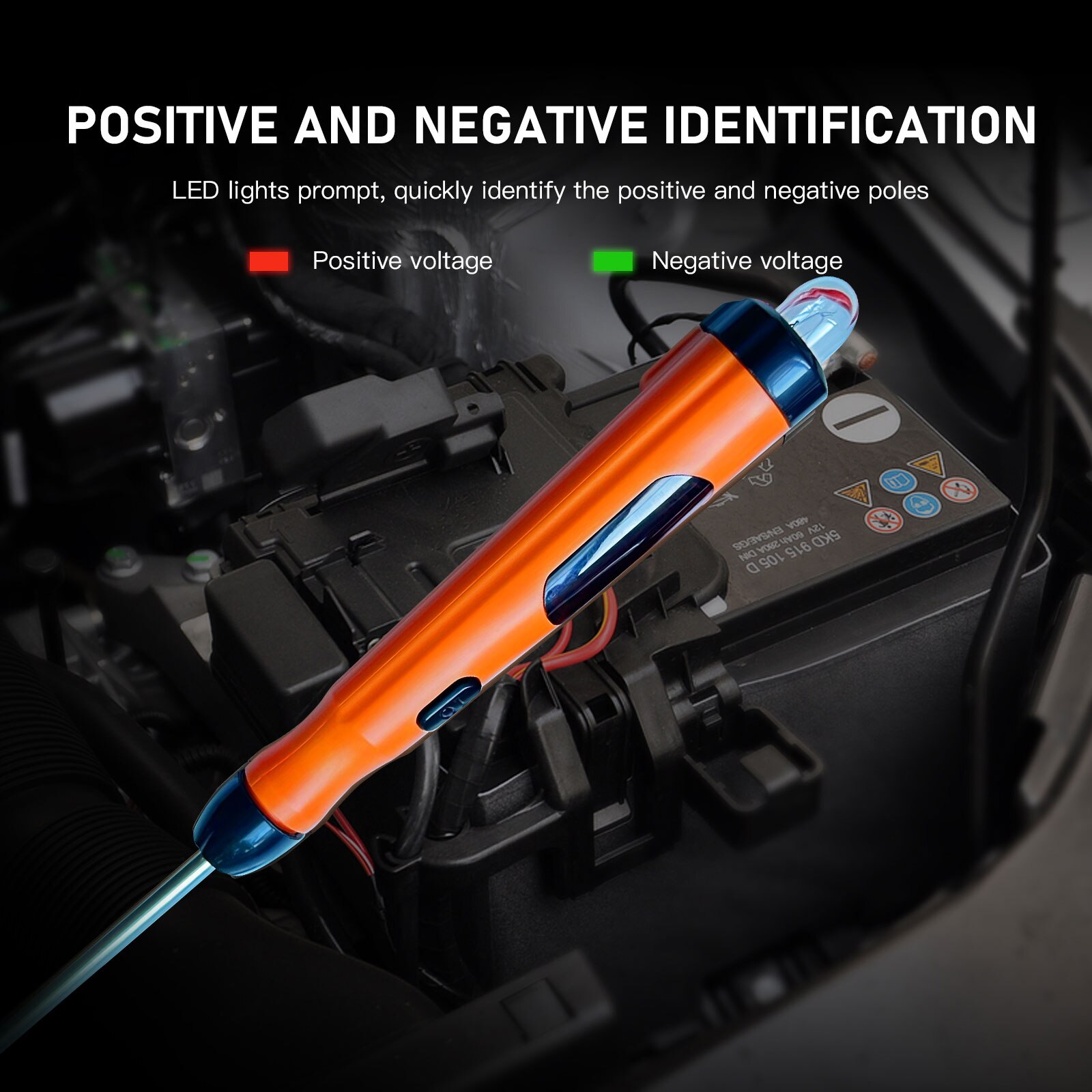

POSITIVE AND NEGATIVE IDENTIFICATION
LED lights prompt,quickly identify the positive and negative poles
Red light:Positive voltage
Green light: Negative voltage

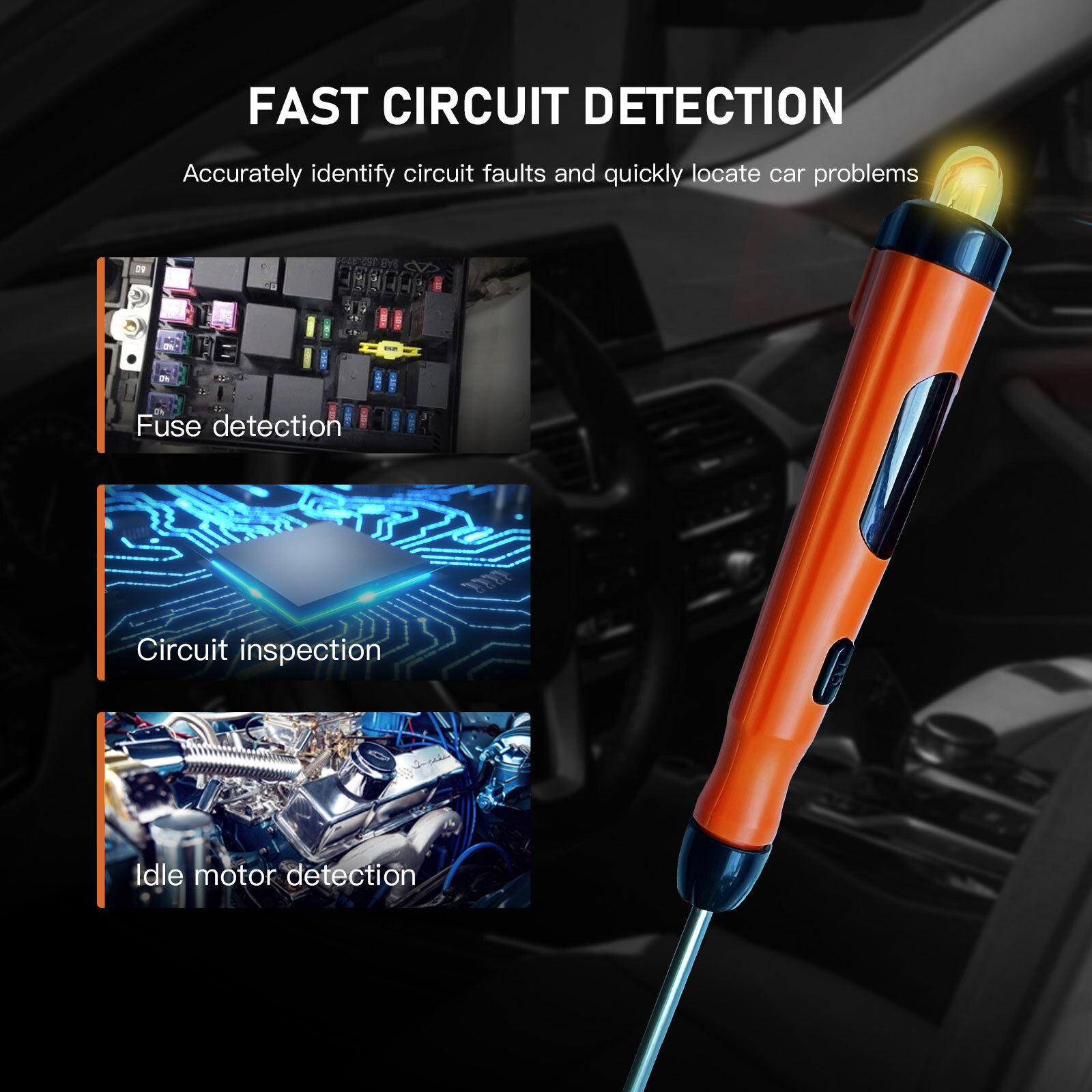

FAST CIRCUIT DETECTION
Accurately identify circuit faults and quickly locate car problems
Fuse detectionITIR
Circuit inspection
ldle motor detection

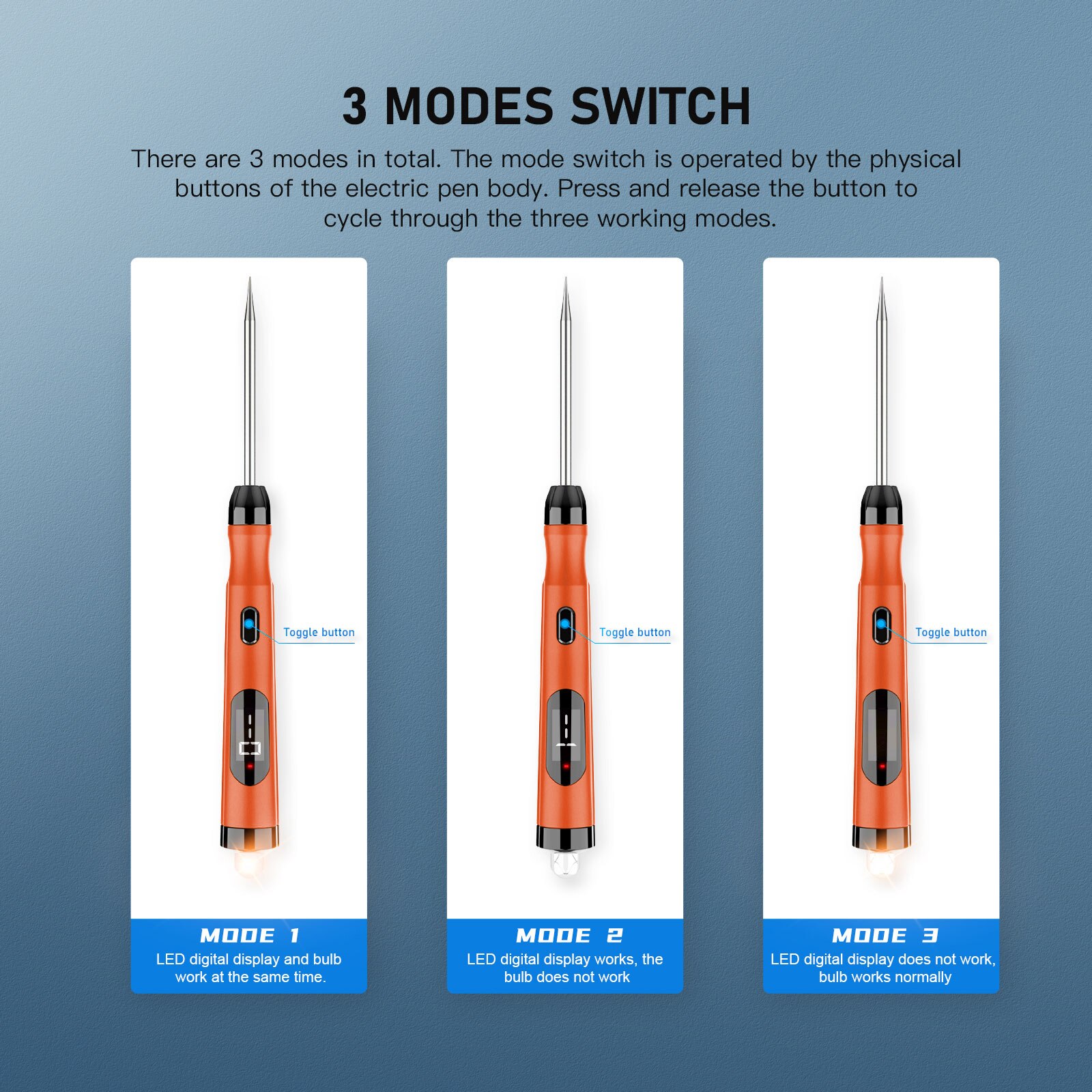

3 MODES SWITCH
There are 3 modes in total. The mode switch is operated by the physical buttons of the electric pen body. Press and release the button to cycle through the three working modes.
MDDE 1 : LED digitall display and bulb work at the same time.
MDDE 2 : LED digital display works.tbulb does not work
MDDE 3 : LED digital display does not wark,bulb works normally

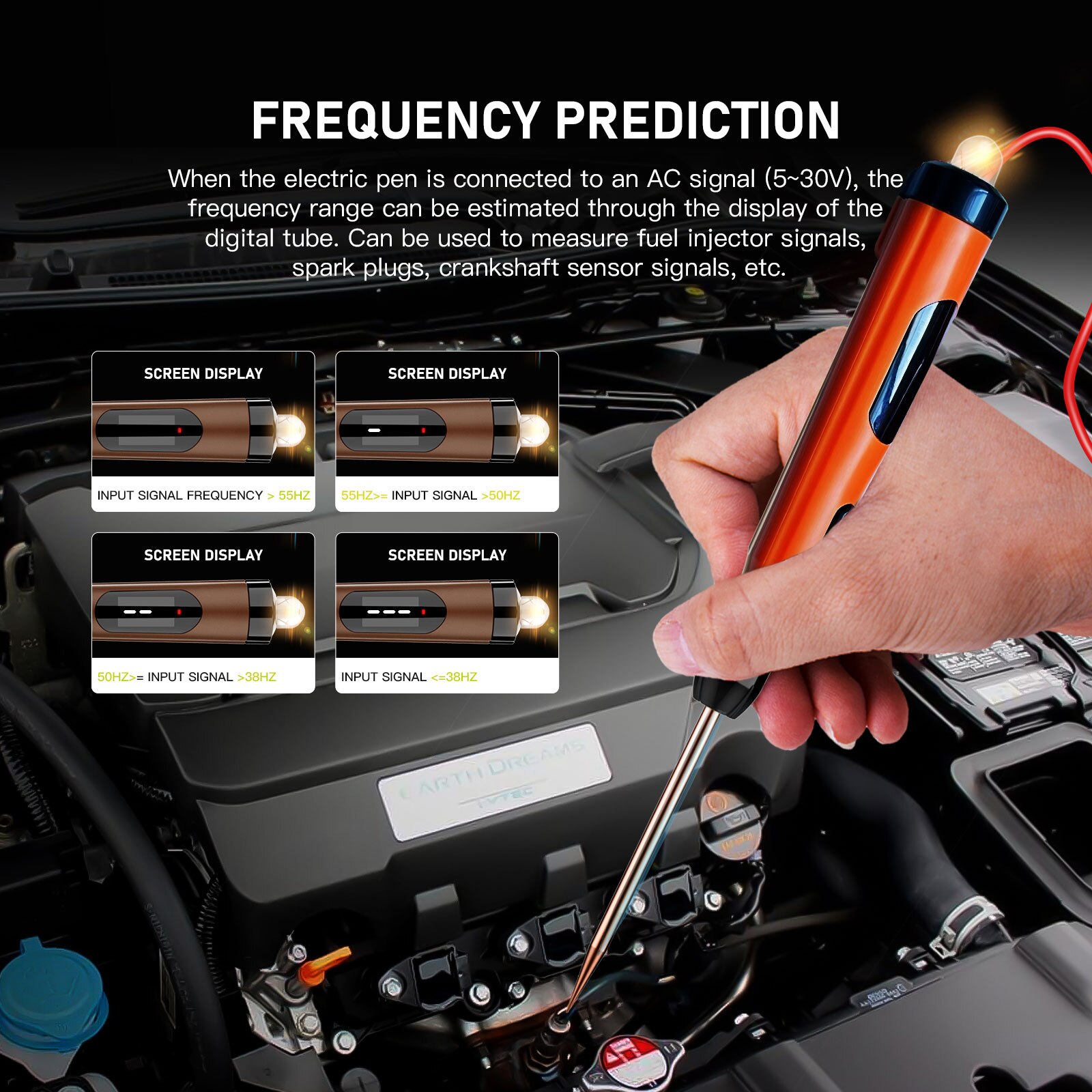

FREQUENCY PREDICTION
When the electric pen is connected to an AC signal (5~30V), thefrequency range can be estimated through the display of thedigital tube.Can be used to measure fuel injector signals,spark plugs, crankshaft sensor signals, etc.
WIDELY APPLICATION
Tractors Battery / Dry Battery / Truck Battery / Car Battery / Motocycle / Industrial Vehicles / Industrial Vehicles / Boat
PRECAUTIONS
1) The probe lamp can be replaced, choose 12V5W.
2) The working voltage range of the equipment is
5V~30V. If it exceeds 30V, the electric pen may be
burnt out.
AUTOMOTIVE CIRCUITINSPECTION
Red Display:Positive Polarity
Green Display:Negative Polarity
