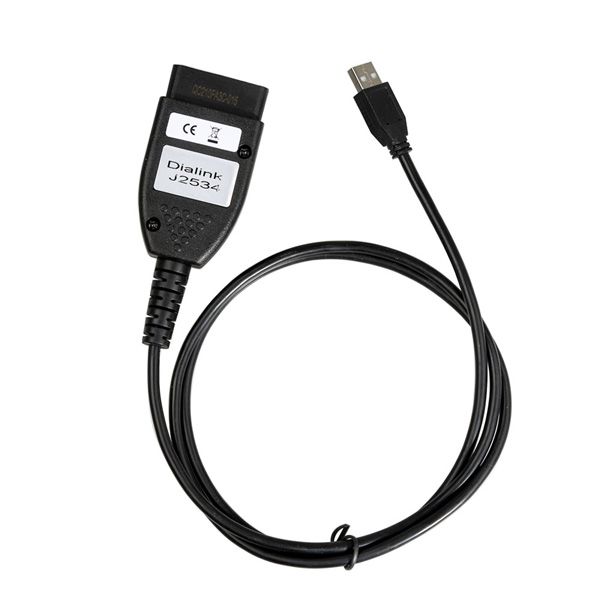

DiaLink J2534 Smsdiag3 OBDII Diagnostic Interface = K-line + ELM327 + D-CAN Cable

Dialink J2534 compatible adapter; Being supplied together with the J2534 interface library, Dialink can be used for ECU reprogramming with CombiLoader or for diagnostics with any third-party tools;Suitable for SMS-Diagnostics 3;
Item No. COBD2989 Price Down Notice
Out of Stock
Price:
US$459.00/ piece
Discount Price:
US$269.99/ piece 41%
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

DiaLink J2534 Smsdiag3 OBDII Diagnostic Interface


Dialink application:
J2534 compatible adapter;
Being supplied together with the J2534 interface library, Dialink can be used for ECU reprogramming with CombiLoader or for diagnostics with any third-party tools;
Suitable for SMS-Diagnostics 3;
Together with SMS-Diagnostics 3 software it can be used for diagnostics of modern vehicles control systems with the standard SAE J1962 diagnostic connector (connection to other diagnostic connectors is achieved by the use of additional adapters).

Application:
  • The dialink j2534 adapter comes with an interface library and can be used to reprogram the computer together with the loaders
  • The SMS-Diagnostics 3 program allows you to diagnose modern vehicle control systems with an SAE J1962 connector. Performance with other connectors provided by adapters
Benefits:
  • Diagnostics and programming of trucks with a voltage of 24 Volts
  • Best suited to J2534 standards compared to other peers.
  • Provides BlueTooth wireless connectivity
  • The exchange rate corresponds to the maximum throughput of the ISO-11898 bus (CAN)
  • USB or BlueTooth connection
Protocols:
  • ISO-11898 / ISO-15765 (CAN)
  • ISO-9141 / ISO-14230 (K / L-Line)
  • J1850 VPW / PWM
Nutrition:
  • Board 12 volts
  • 24 volt board
  • USB powered
  • Operating range 8-35 volts
Used diagnostic connector pins:
  • 2 (BUS +) / 10 (BUS-): J1850 VPW / PWM (Ford / GM / Chrysler ...)
  • 4/5: land
  • 6 (CAN-H) / 14 (CAN-L): ISO-11898 / ISO-15765 CAN
  • 7 (K-Line) / 15 (L-Line): ISO-9141 / ISO-14230 K / L-line (bidirectional lines)
  • 16: power
Additionally, on the basis of the built-in microprocessor, the DiaLink J2534 adapter provides operation with programs via
  • K-Line - works with any programs designed for a regular USB-K-Line-adapter
  • D-CAN - works with BMW diagnostic software programs via EDIABAS (STD: OBD driver) with K-bus and CAN-bus support
  • ELM327 - works with programs designed to work with the popular ELM327 microcircuit (the mode will be added soon by issuing an update of the adapter's firmware)
The main differences of the adapter DiaLink J2534 from OpenPort
  • Better compatibility with J2534 standards compared to software for OpenPort adapter .
  • The capacity of the DiaLink J2534 adapter is 8 times faster, provided on the basis of the ISO-11898 (CAN) standard
Packing List

1set X DiaLink J2534 Smsdiag3 Diagnostic Cable
