A2 GPS HUD Head Up Display Digital Speedometer Electronics Auto Windshield Projector Speed Alarm Car Accessories

A2 GPS HUD Head Up Display Digital Speedometer Electronics Auto Windshield Projector Speed Alarm Car Accessories

HUD Main Functions&Features:

1. Available for any car, easy to install, plug and play

2.Screen 3.5 inch HD display

3.Multi-color design makes the screen more abundant and easier to read

4. Nano-technology to eliminate double reflections,more clear.

5. Rich Contents: speed,compass, speed alarm,free switch between km and miles

6. Autopower on/off:HUD start and off with vehicle started and shutdown, effective protection of the car battery;retaining the manual switch mode,more easy to control HUD.

7. Automatic and manual brightness adjustment mode,driving without glare.

1: Driving directions: N-north, S-south, W-west, E-east

2: Speed unit(km/miles)

3: Speed

4: Satellite signal icon - When the light change from red to green, it prove search satellite successfully

5: light-sensor

6: Buzzer icon

7: Speed icon

8: Setting button:Three way wave button, short or long press

a.Up button = up motion

b.Ok button = inward button press

c.Down button = down motion

9: Power switch

10:USB cable interface

WIIYII A2

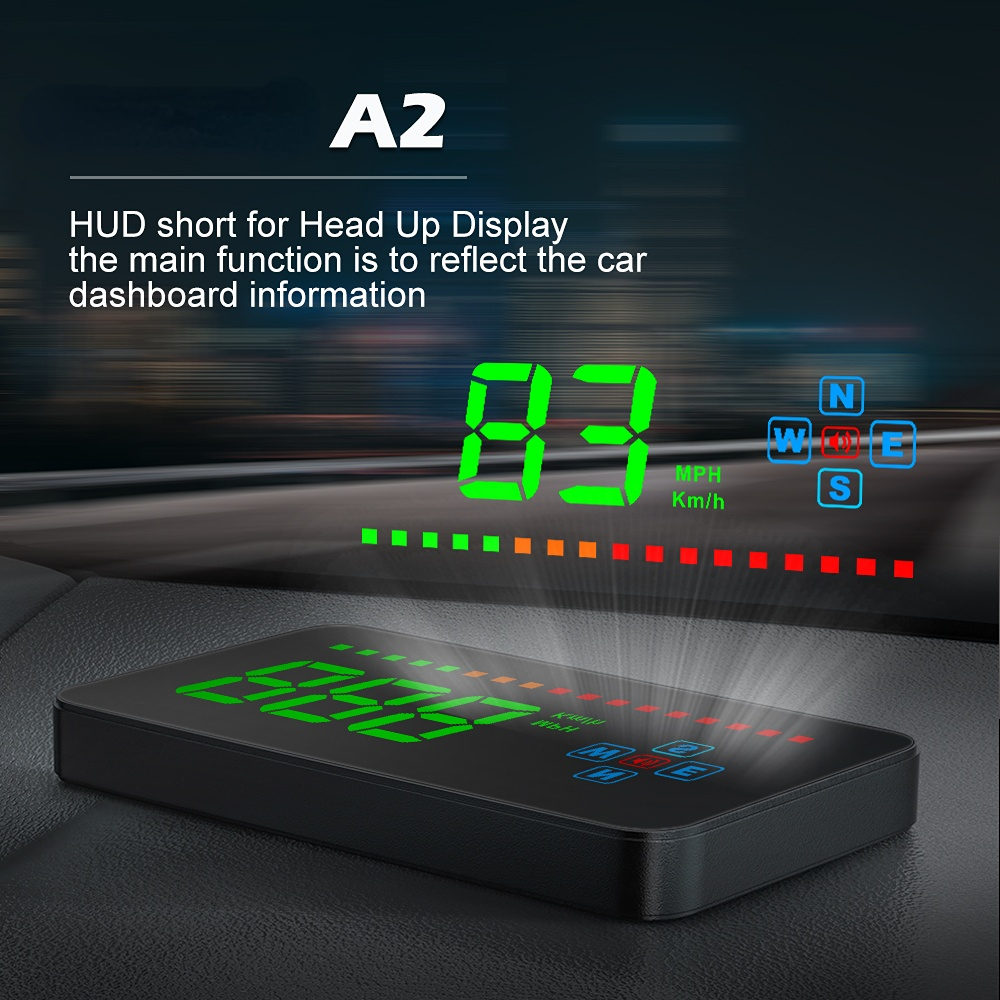

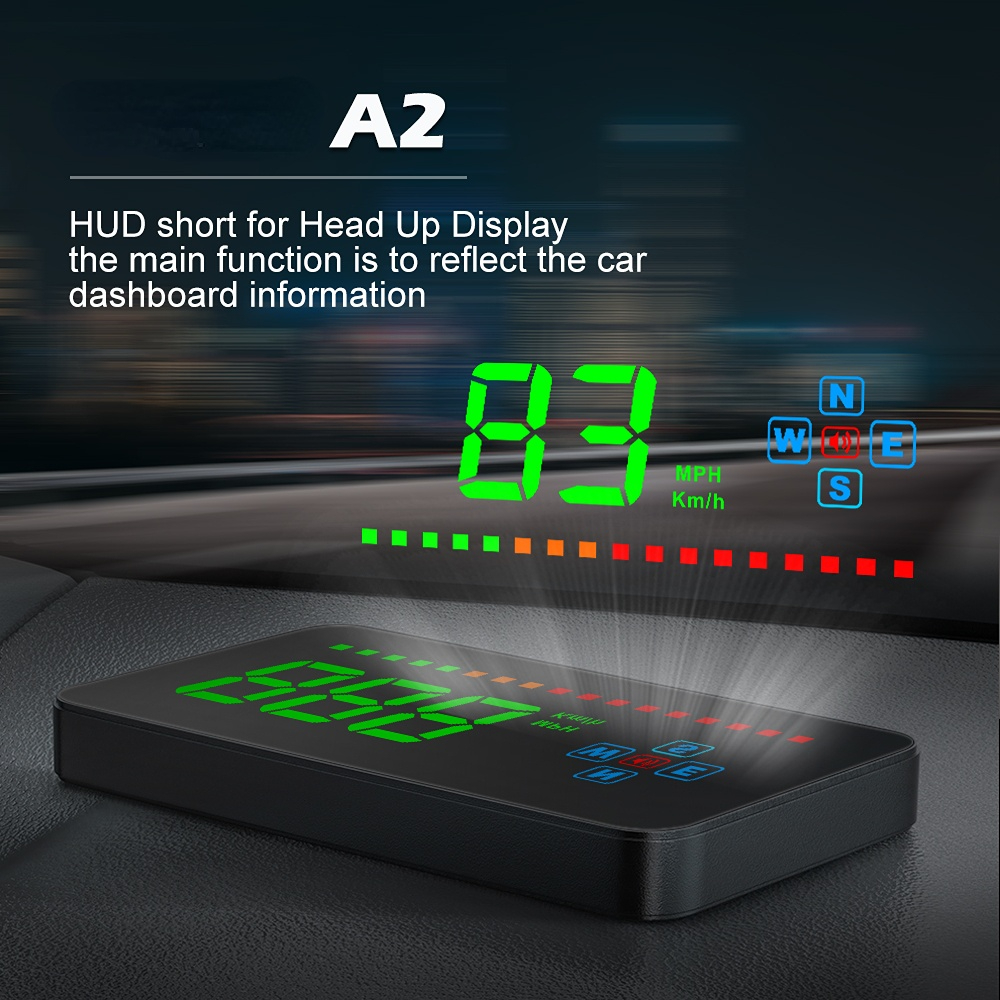

HUD short for Head Up Display the main function is to reflect the car dashboard information

Driving speed from satellite

Work to all the cars and trucks in the world

HD & Accurate Display

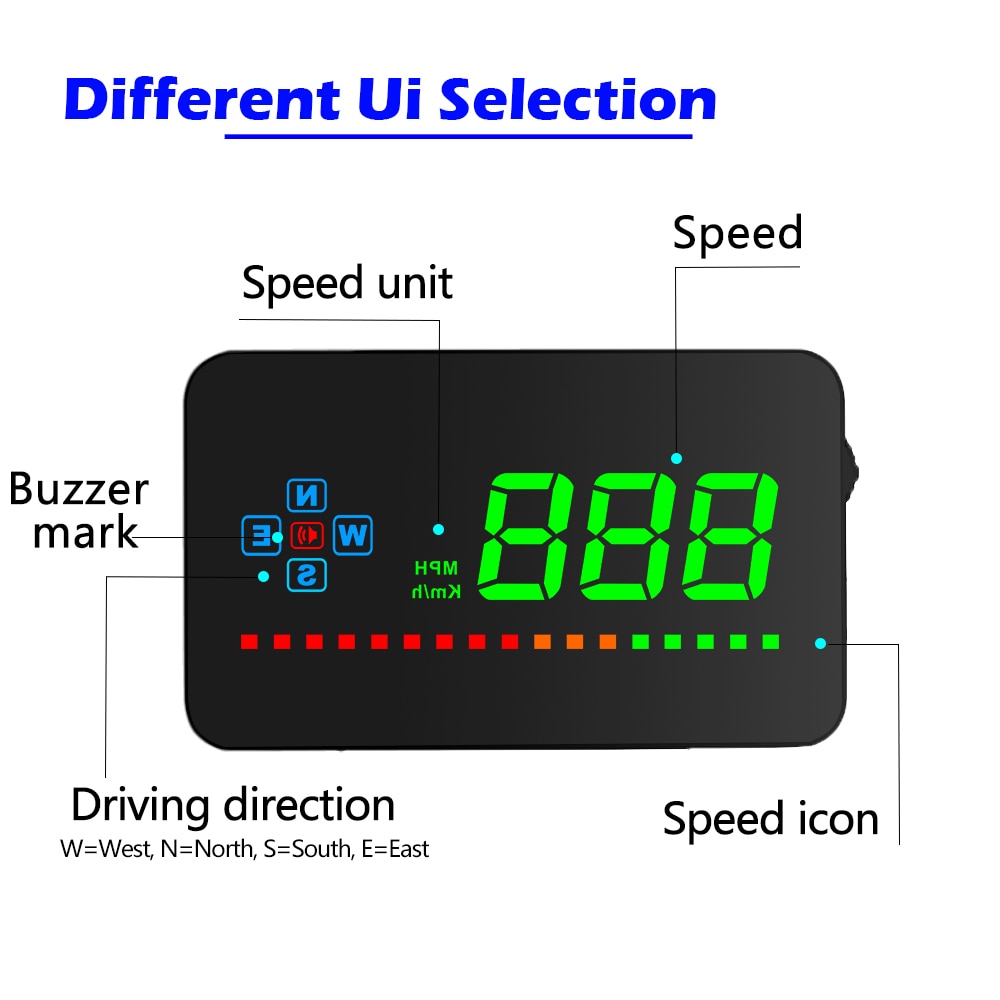

Satellite Signal Icon / Speed / Speed icon / Speed Unit(MPH or Km/h) / Buzzer / DrivingDirection(W=west,N=north,E=east,S=south)

Getting power from car charger,plug and play

DISPLAY ICON

Speed/Speed icon/Satellite signal icon/Speed unit/Light-sensor/Driving directions icon/Buzzer icon

MULTI-FUNCTION AREA

Speed/water temperature/voltage/mileage/driving time/ fuel consumption/altitude/clock/1 00 kilometers acceleration

Product Introduction (FOR ALL CAR)

HUD short for Head Up Display.lIt displays driving datas on the front windshield such as speed on the car front window glass;avoiding drivers unsafety because of watching the instrument while drivinq.Drivers can read the driving information instantly , and can always.keep the best state on the way with HUD.

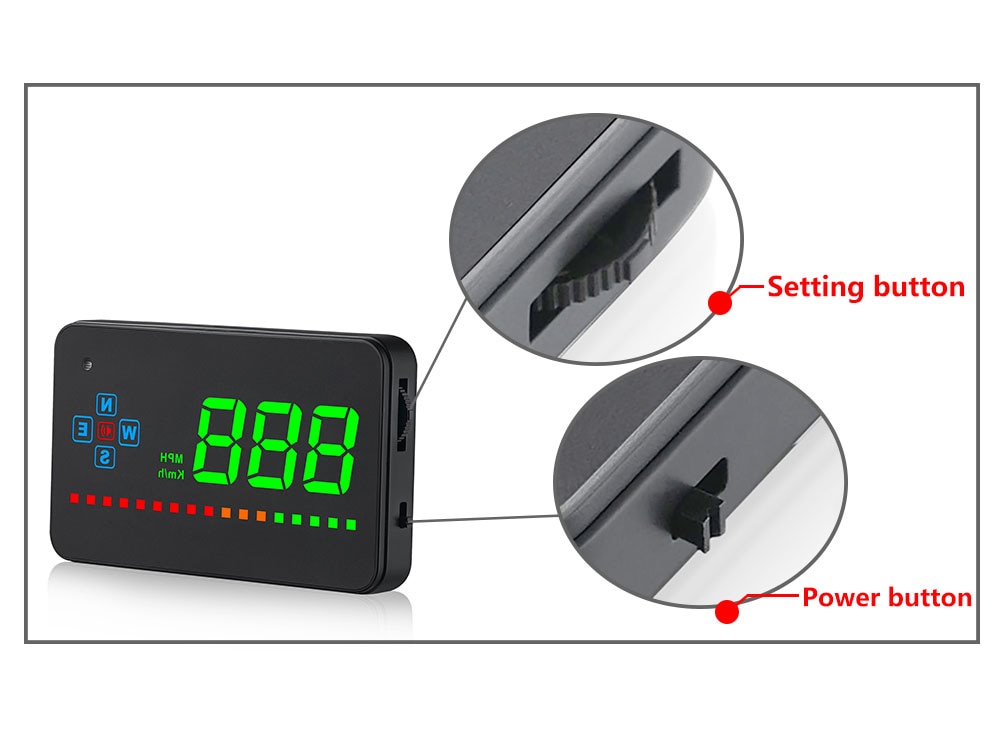

Setting Button

1.Three way wave button, short or long press a.Up button = up motionb.Ok button = inward button pressC.Down button = down motion

2:Power switch

1.HUD screen without any display, and no power

Check the car charger cable if it is tight, pull down repeatedly inserted multiple times, check the HUD switch if it powers on. If there still no display please try another car to test and analyze whether the car cigarette lighter interface is bad, if it is a bad cigarette lighter, please try to connect the cable line to the car battery.

2.Wrong operation lead to crashes.Or inaccurate datas

Do a reset setting

1.Speed

2.Speed icon

3.Satellite signal icon - Searching for the satellite signal the light flashes

4.Speed unit(km/miles)

5.Light-senson

6.Driving directions icon:west,north,east,south

7.Buzzer icon

SOLUTION FOR COMMON PROBLEMS

NO SPEED ,AUTO POWERS OFF AFTER 5 MINUTES.

The default auto powers off time is 5 minutes, if there is no speed, HUD will power off after 5 minutes,it built-in vibration switch, as long as there is a slight vibration it will powers on.

INACCURATE SPEED

When HUD is power on,vertical press the wave button 5 seconds to enter into the menu options, here menu options shows O,parameter shows 107, up or down the wave button to increase or decrease the value according to the difference until it shows correct one.After adjustment, vertica press in 5 seconds to save it.

SAFE DRIVING

80% of Accidents are Caused by Distraction Bow Your Head 3Second= Drive a Car 50 Meters Blindly

Front View HUD You can view navigation and nformation at eye level instead of looking dowr repeatedly to ensure safer driving

the chance of an accident isas high as 80% When you focus on your phone or dashboard only 3s

Auto power on/off,Energy saving

HUD device will auto power on/off accordingto the car engine. Easier to use and will not waste the energy

Package List:

1 x HUD

1 x Manual

1 xGPS USB Cable

1 x Reflective film

1 x3M Sticker
